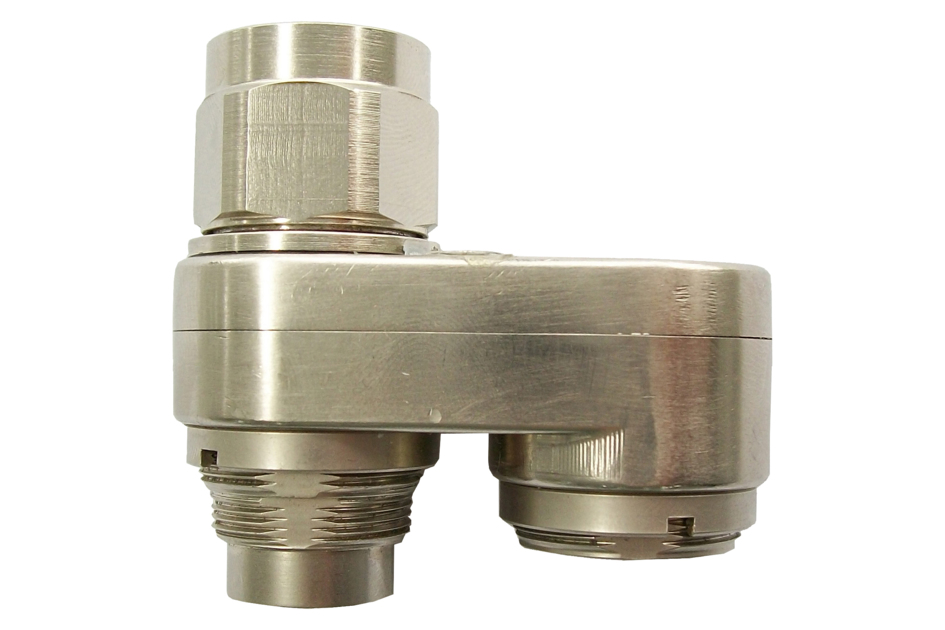

AISG-T
AISG Three-way Tee
Specifications
Features and Benefits
- Compatible with all Argus antennas except for the CNNPX series
Specifications
Product Classification
| Product Type | RET splitter |
General Specifications
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Body Style | Straight |
| AISG Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Body Style | Straight |
| AISG Output Connector Quantity | 2 |
| Color | Silver |
| Data Conductors, quantity | 2 |
| Power Conductors, quantity | 4 |
| Total Conductors, quantity | 7 |
Dimensions
| Height | 44 mm | 1.732 in |
| Depth | 22 mm | 0.866 in |
| Length | 48 mm | 1.89 in |
Electrical Specifications
| Protocol | AISG 1.1 | AISG 2.0 |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Weight, net | 0.1 kg | 0.22 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
