TP-G300-72

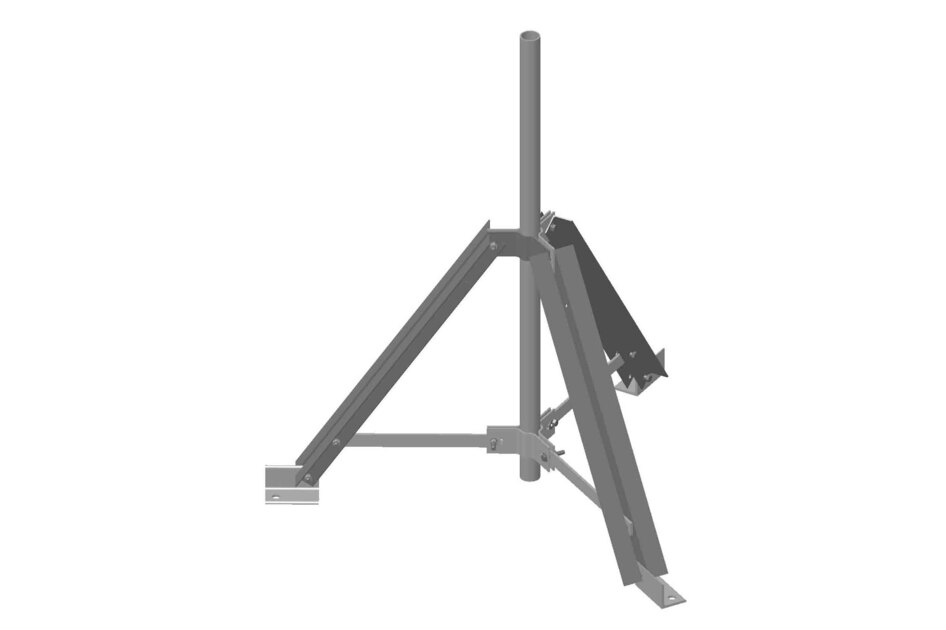

Universal Tripod Mount, 2-7/8 in OD x 72 in (73 mm OD x 1.8 m)
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Tripod mount

General Specifications

Mounting Non-penetrating | Surfaces
Pipe, quantity 1

Dimensions

Height 72 in | 1828.8 mm
Width 60 in | 1524 mm
Length 5 ft | 1.524 m
Pipe Length 72 in | 1828.8 mm
Pipe Outer Diameter 2.9 in | 73.66 mm

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 65.8 kg | 145.064 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Tripod mount

General Specifications

Mounting Non-penetrating | Surfaces
Pipe, quantity 1

Dimensions

Height 72 in | 1828.8 mm
Width 60 in | 1524 mm
Length 5 ft | 1.524 m
Pipe Length 72 in | 1828.8 mm
Pipe Outer Diameter 2.9 in | 73.66 mm

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 65.8 kg | 145.064 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
