NHHSS-45B-R2BT4

10-port sector antenna, 2x 698–896, 4x 1695–2200 and 4x 3100-4200 MHz, 45° HPBW, 2x RETs and 2x SBTs

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 3
Internal RET Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 1828 mm | 71.969 in
Net Weight, antenna only 34.9 kg | 76.941 lb

Array Layout

Click on image to enlarge.

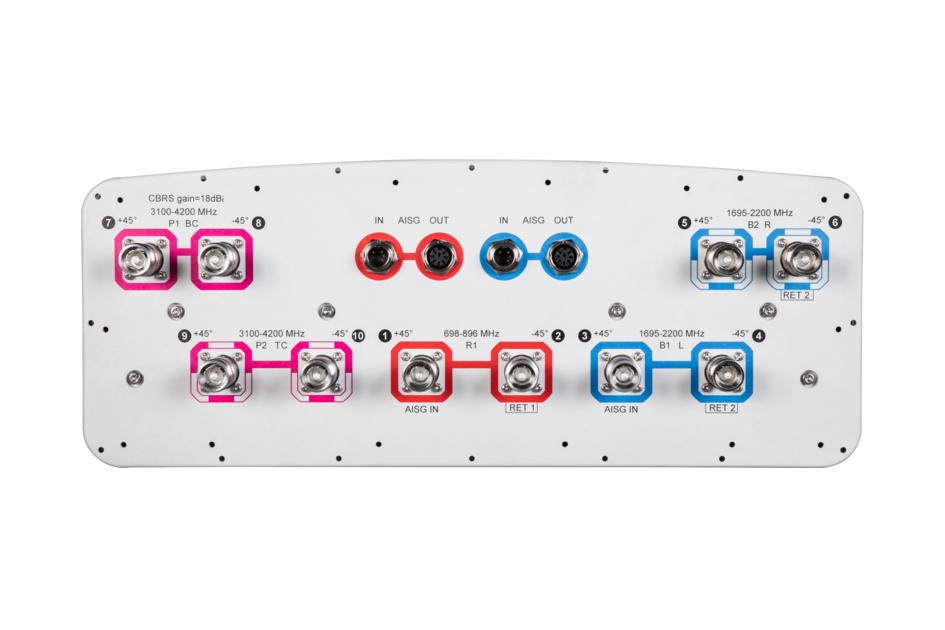

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz
Polarization ±45°

Electrical Specifications

R1 R1 B1,B2 B1,B2 B1,B2 P1,P2 P1,P2 P1,P2
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
RF Port 1,2 1,2 3-6 3-6 3-6 7-10 7-10 7-10
Gain, dBi 17.0 17.9 19.1 19.7 20.4 16.9 17.5 17.2
Gain at Mid Tilt, dBi 16.7 17.7 18.9 19.5 20.0 16.5 17.2 16.5
Beamwidth, Horizontal, degrees 45 40 44 42 41 49 43 40
Beamwidth, Vertical, degrees 12.2 10.8 5.8 5.4 5.1 9.7 9.1 8.5
Beam Tilt, degrees 2–14 2–14 0–8 0–8 0–8 4 4 4
USLS (First Lobe), dB 19 20 17 17 18 18 18 14
Front-to-Back Ratio at 180°, dB 31 35 34 33 33 31 32 26
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 31 32 31 28 28 28 29 23
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 250 250 250 250 250 100 100 100

Mechanical Specifications

Wind Loading @ Velocity, frontal 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 935.0 N @ 150 km/h (210.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 526 mm | 20.709 in
Depth, packed 283 mm | 11.142 in
Length, packed 1996 mm | 78.583 in
Weight, gross 52.8 kg | 116.404 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
