24-port sector antenna, 4x 694–960, 4x 1427–1518, 4x 1695-2180, 4x 2490-2690 65° HPBW and 8x 3300-3800 MHz, 7x RET

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Integrated with a calibration board
Optimized for Software Defined Split 6 Sector applications
2 columns for 694-960 MHz and 2 columns for 1427-1518 / 1695-2180 / 2490-2690 MHz and 4 columns for 3300-3800 MHz
Seven internal RETs control the antenna arrays
MQ4/MQ5 cluster connector for 3.3-3.8GHz, equipped with calibration port

Specifications

General Specifications

Antenna Type	Sector- and beamforming
Band	Multiband
Calibration Connector Interface	MQ5
Calibration Connector Quantity	1
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| MQ4 \| MQ5
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	4
RF Connector Quantity, total	24

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (1) \| Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	1499 mm \| 59.016 in
Net Weight, antenna only	37.8 kg \| 83.335 lb
TDD Column Spacing	42 mm \| 1.654 in

Array Layout

Click on image to enlarge.

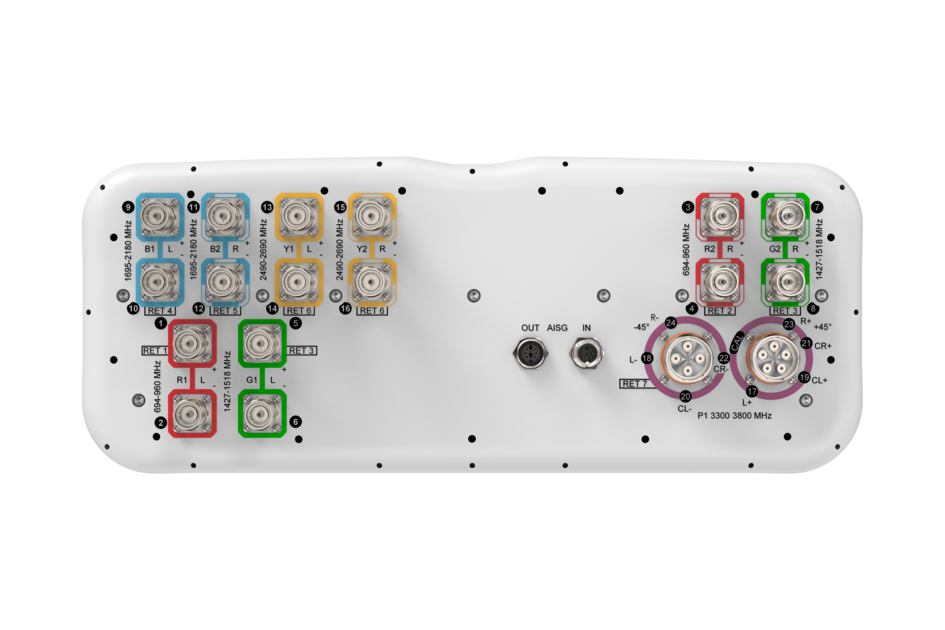

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1427 – 1518 MHz \| 1695 – 2180 MHz \| 2496 – 2690 MHz \| 3300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi	13.4	13.5	13.8	14.9	15.9	16.8	15.9
Beamwidth, Horizontal, degrees	60	60	60	59	68	57	91
Beamwidth, Vertical, degrees	17.2	15.8	15	8.1	6.5	4.9	6.5
Beam Tilt, degrees	2–16	2–16	2–16	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	21	17	17	17	17	16	16
Front-to-Back Ratio at 180°, dB	30	29	29	31	29	30	28
Coupling level, Amp, Antenna port to Cal port, dB							26
Coupling level, max Amp Δ, Antenna port to Cal port, dB							±2
Coupler, max Amp Δ, Antenna port to Cal port, dB							0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees							7
Isolation, Cross Polarization, dB	26	26	26	25	25	25	25
Isolation, Inter-band, dB	26	26	26	28	28	28	28
Isolation, Co-polarization, dB							20
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-130
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	150	75

Electrical Specifications, BASTA

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain by all Beam Tilts, average, dBi	13.1	13.1	13.5	14.5	15.3	16.2	15.2
Gain by all Beam Tilts Tolerance, dB	±0.6	±0.6	±0.4	±0.8	±0.8	±0.9	±0.8
Beamwidth, Horizontal Tolerance, degrees	±8.4	±6.8	±5.2	±5	±5.5	±4.6	±19.2
Beamwidth, Vertical Tolerance, degrees	±1.1	±1.2	±1.1	±0.5	±0.8	±0.3	±0.6
USLS, beampeak to 20° above beampeak, dB	16	16	15	13	15	13	14
Front-to-Back Total Power at 180° ± 30°, dB	20	19	21	24	23	25	21
CPR at Boresight, dB	20	19	19	13	18	16	15

Electrical Specifications, Broadcast 65

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi							16.5
Beamwidth, Horizontal, degrees							63
Beamwidth, Vertical, degrees							6.6
USLS (First Lobe), dB							17

Electrical Specifications, Service Beam

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Steered 0° Gain, dBi							20.6
Steered 0° Beamwidth, Horizontal, degrees							24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB							27
Steered 0° Horizontal Sidelobe, dB							15
Steered 0° USLS (First Lobe), dB							17
Steered 30° Gain, dBi							19.7
Steered 30° Beamwidth, Horizontal, degrees							27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB							26

Electrical Specifications, Soft Split

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi							19.6
Beamwidth, Horizontal, degrees							32
Front-to-Back Total Power at 180° ± 30°, dB							26
Horizontal Sidelobe, dB							19
USLS (First Lobe), dB							18

Mechanical Specifications

Wind Loading @ Velocity, frontal	498.0 N @ 150 km/h (112.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	148.0 N @ 150 km/h (33.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	597.0 N @ 150 km/h (134.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	342.0 N @ 150 km/h (76.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	565 mm \| 22.244 in
Depth, packed	309 mm \| 12.165 in
Length, packed	1686 mm \| 66.378 in
Weight, gross	50.7 kg \| 111.774 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted

General Specifications

Antenna Type	Sector- and beamforming
Band	Multiband
Calibration Connector Interface	MQ5
Calibration Connector Quantity	1
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| MQ4 \| MQ5
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	4
RF Connector Quantity, total	24

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (1) \| Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	1499 mm \| 59.016 in
Net Weight, antenna only	37.8 kg \| 83.335 lb
TDD Column Spacing	42 mm \| 1.654 in

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1427 – 1518 MHz \| 1695 – 2180 MHz \| 2496 – 2690 MHz \| 3300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi	13.4	13.5	13.8	14.9	15.9	16.8	15.9
Beamwidth, Horizontal, degrees	60	60	60	59	68	57	91
Beamwidth, Vertical, degrees	17.2	15.8	15	8.1	6.5	4.9	6.5
Beam Tilt, degrees	2–16	2–16	2–16	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	21	17	17	17	17	16	16
Front-to-Back Ratio at 180°, dB	30	29	29	31	29	30	28
Coupling level, Amp, Antenna port to Cal port, dB							26
Coupling level, max Amp Δ, Antenna port to Cal port, dB							±2
Coupler, max Amp Δ, Antenna port to Cal port, dB							0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees							7
Isolation, Cross Polarization, dB	26	26	26	25	25	25	25
Isolation, Inter-band, dB	26	26	26	28	28	28	28
Isolation, Co-polarization, dB							20
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-130
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	150	75

Electrical Specifications, BASTA

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain by all Beam Tilts, average, dBi	13.1	13.1	13.5	14.5	15.3	16.2	15.2
Gain by all Beam Tilts Tolerance, dB	±0.6	±0.6	±0.4	±0.8	±0.8	±0.9	±0.8
Beamwidth, Horizontal Tolerance, degrees	±8.4	±6.8	±5.2	±5	±5.5	±4.6	±19.2
Beamwidth, Vertical Tolerance, degrees	±1.1	±1.2	±1.1	±0.5	±0.8	±0.3	±0.6
USLS, beampeak to 20° above beampeak, dB	16	16	15	13	15	13	14
Front-to-Back Total Power at 180° ± 30°, dB	20	19	21	24	23	25	21
CPR at Boresight, dB	20	19	19	13	18	16	15

Electrical Specifications, Broadcast 65

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi							16.5
Beamwidth, Horizontal, degrees							63
Beamwidth, Vertical, degrees							6.6
USLS (First Lobe), dB							17

Electrical Specifications, Service Beam

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Steered 0° Gain, dBi							20.6
Steered 0° Beamwidth, Horizontal, degrees							24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB							27
Steered 0° Horizontal Sidelobe, dB							15
Steered 0° USLS (First Lobe), dB							17
Steered 30° Gain, dBi							19.7
Steered 30° Beamwidth, Horizontal, degrees							27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB							26

Electrical Specifications, Soft Split

Frequency Band, MHz	694–790	790–890	890–960	1427–1518	1695–2180	2490–2690	3300–3800
Gain, dBi							19.6
Beamwidth, Horizontal, degrees							32
Front-to-Back Total Power at 180° ± 30°, dB							26
Horizontal Sidelobe, dB							19
USLS (First Lobe), dB							18

Mechanical Specifications

Wind Loading @ Velocity, frontal	498.0 N @ 150 km/h (112.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	148.0 N @ 150 km/h (33.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	597.0 N @ 150 km/h (134.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	342.0 N @ 150 km/h (76.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	565 mm \| 22.244 in
Depth, packed	309 mm \| 12.165 in
Length, packed	1686 mm \| 66.378 in
Weight, gross	50.7 kg \| 111.774 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted
