E15Z01P13

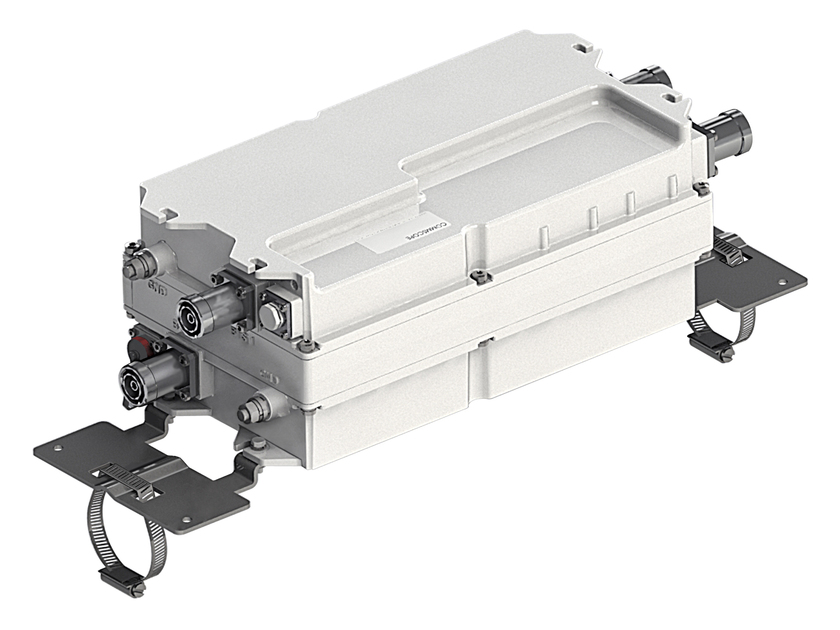

Tower Mounted Amplifier, Twin Diplexed Dual Band 850/1900 with AISG

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type 1-BTS:2-ANT (Diplex) | Tower mounted amplifier

General Specifications

Color Gray
Modularity 2-Twin
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 7-16 DIN Female
RF Connector Interface Body Style Long neck

Dimensions

Height 330 mm | 12.992 in
Width 184 mm | 7.244 in
Depth 140 mm | 5.512 in
Ground Screw Diameter 6 mm | 0.236 in
Mounting Pipe Diameter Range 50–120 mm

Electrical Specifications

License Band, LNA CEL 850 | PCS 1900

Electrical Specifications, dc Power/Alarm

dc Switching/Redundancy No
Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform
Operating Current at Voltage 240 mA @ 12 V | 70 mA @ 24 V
Operating Current Tolerance ±30 mA
Voltage 7–30 Vdc
Voltage, CWA Mode 10–18 Vdc
Alarm Current, CWA Mode 30–170 mA @ 10–18 V

Electrical Specifications, AISG

AISG Carrier 2.176 MHz ± 100 ppm
AISG Connector 8-pin DIN Female
AISG Connector Standard IEC 60130-9
Default Protocol AISG 2.0
Protocol AISG 1.1 | AISG 2.0
Voltage, AISG Mode 10–30 Vdc

Electrical Specifications

Sub-module 1 | 2 1 | 2
Branch 1 2
Port Designation ANT 850 ANT 1900
License Band CEL 850, LNA PCS 1900, LNA

Electrical Specifications, Band Reject

Frequency Range, MHz 851–856
Attenuation, minimum, dB 30.0

Electrical Specifications, Rx Uplink

Frequency Range, MHz 824–849 1850–1910
Bandwidth, MHz 25.00 60.00
Gain, nominal, dB 12.0 12.0
Gain Tolerance, dB +1.3/-1.0 +1.3/-1.0
Noise Figure, typical, dB 1.1 1.5
Group Delay Variation, maximum, ns 270 50
Group Delay Variation Bandwidth, MHz 5.00 5.00
Total Group Delay, maximum, ns 370 180
Output IP3, minimum, dBm 25 21
Return Loss, minimum, dB 18 18
Insertion Loss - Bypass Mode, typical, dB 2.0 3.0
Return Loss - Bypass Mode, typical, dB 18 18
TX Band Rejection, minimum, dB 80 80

Electrical Specifications, Tx Downlink

Frequency Range, MHz 869–894 1930–1990
Bandwidth, MHz 25.00 60.00
Insertion Loss, maximum, dB 0.50 0.90
Group Delay Variation, maximum, ns 25 20
Group Delay Variation Bandwidth, MHz 5.00 5.00
Total Group Delay, maximum, ns 65 60
Return Loss, minimum, dB 18 18
Input Power, RMS, maximum, W 500 300
Input Power, PEP, maximum, W 5,000 3,000
3rd Order PIM, typical, dBc -155 -155
3rd Order PIM Test Method 2 x 20 W CW tones 2 x 20 W CW tones

Material Specifications

Finish Painted

Mechanical Specifications

Wind Loading @ Velocity, maximum 60.0 N @ 115 km/h (13.5 lbf @ 115 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Environmental Specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity Up to 100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Weight, net 10.9 kg | 24.03 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
