VZWSMART-MSK7 | ANGLE TO ANGLE CROSSOVER KIT
ANGLE TO ANGLE CROSSOVER KIT
Features and Benefits

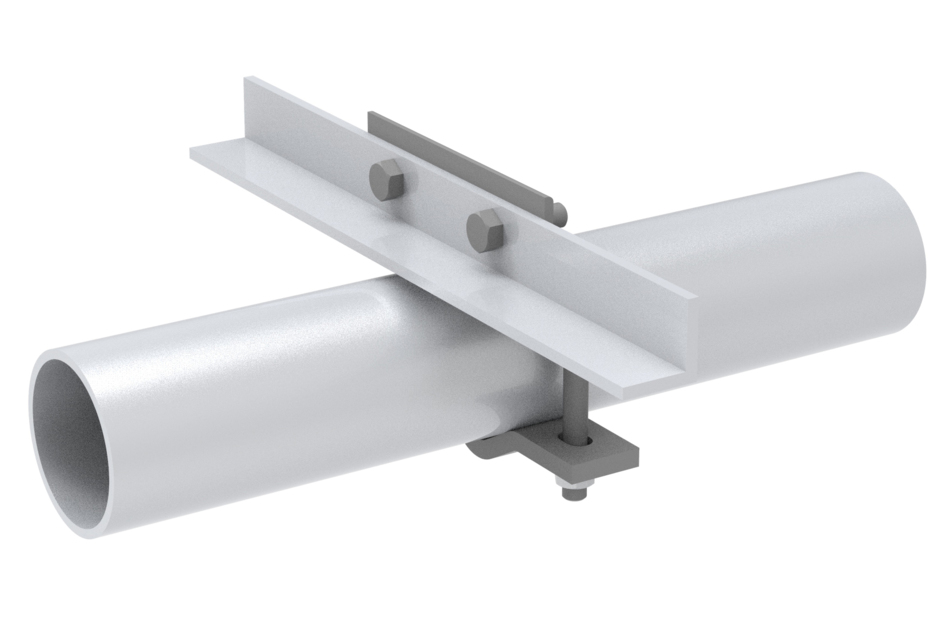

Pipe to Angle Cross Over Plate, Mounts up to 4-1/2” Pipe to Angled member, Pipe/Angle not included
Specifications
Product Classification
| Product Type | Clamp plate |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp assembly |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Clamp plate |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp assembly |
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
