This product was discontinued on: March 30, 2024

For other alternatives, please contact us for more information.

0 Replacement products available

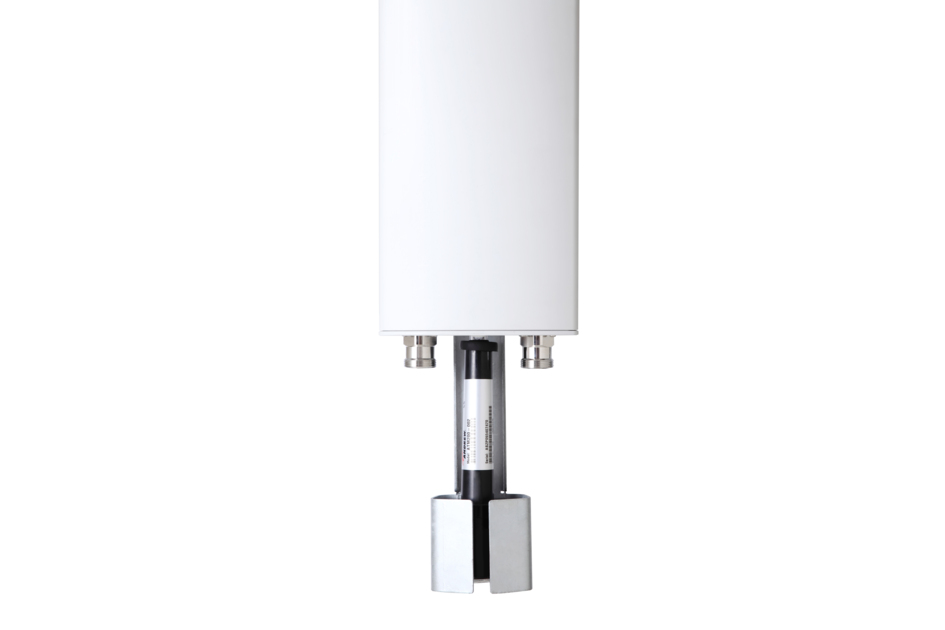

HBX-6516DS-VTM | HBX-6516DS-A1M

2-port sector antenna, 2x 1710–2180 MHz, 65° HPBW, RET compatible

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Superior azimuth tracking and pattern symmetry to minimize any sector overlap
  • Rugged, reliable design with excellent passive intermodulation suppression

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material PVC, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator HBX-6516DS-A1M

Dimensions

Width 166 mm | 6.535 in
Depth 83 mm | 3.268 in
Length 1306 mm | 51.417 in
Net Weight, without mounting kit 4.7 kg | 10.362 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 17.4 17.6 17.8
Beamwidth, Horizontal, degrees 66 64 66
Beamwidth, Vertical, degrees 7.4 6.9 6.4
Beam Tilt, degrees 0–10 0–10 0–10
USLS (First Lobe), dB 19 19 19
Front-to-Back Ratio at 180°, dB 35 35 35
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.4 | 15.6 1.4 | 15.6 1.4 | 15.6
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 350 350 350

Electrical Specifications, BASTA

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain by all Beam Tilts, average, dBi 17.1 17.4 17.4
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.3 ±0.5
Gain by Beam Tilt, average, dBi 0 ° | 17.0
5 ° | 17.2
10 ° | 16.9		 0 ° | 17.3
5 ° | 17.5
10 ° | 17.0		 0 ° | 17.4
5 ° | 17.3
10 ° | 17.1
Beamwidth, Horizontal Tolerance, degrees ±3.8 ±2.4 ±5.2
Beamwidth, Vertical Tolerance, degrees ±0.4 ±0.4 ±0.6
USLS, beampeak to 20° above beampeak, dB 18 18 17
Front-to-Back Total Power at 180° ± 30°, dB 26 27 26
CPR at Boresight, dB 17 19 20
CPR at Sector, dB 9 7 7

Mechanical Specifications

Wind Loading @ Velocity, frontal 257.0 N @ 150 km/h (57.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 277 mm | 10.906 in
Depth, packed 188 mm | 7.402 in
Length, packed 1442 mm | 56.772 in
Weight, gross 11.5 kg | 25.353 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material PVC, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator HBX-6516DS-A1M

Dimensions

Width 166 mm | 6.535 in
Depth 83 mm | 3.268 in
Length 1306 mm | 51.417 in
Net Weight, without mounting kit 4.7 kg | 10.362 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 17.4 17.6 17.8
Beamwidth, Horizontal, degrees 66 64 66
Beamwidth, Vertical, degrees 7.4 6.9 6.4
Beam Tilt, degrees 0–10 0–10 0–10
USLS (First Lobe), dB 19 19 19
Front-to-Back Ratio at 180°, dB 35 35 35
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.4 | 15.6 1.4 | 15.6 1.4 | 15.6
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 350 350 350

Electrical Specifications, BASTA

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain by all Beam Tilts, average, dBi 17.1 17.4 17.4
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.3 ±0.5
Gain by Beam Tilt, average, dBi 0 ° | 17.0; 5 ° | 17.2; 10 ° | 16.9 0 ° | 17.3; 5 ° | 17.5; 10 ° | 17.0 0 ° | 17.4; 5 ° | 17.3; 10 ° | 17.1
Beamwidth, Horizontal Tolerance, degrees ±3.8 ±2.4 ±5.2
Beamwidth, Vertical Tolerance, degrees ±0.4 ±0.4 ±0.6
USLS, beampeak to 20° above beampeak, dB 18 18 17
Front-to-Back Total Power at 180° ± 30°, dB 26 27 26
CPR at Boresight, dB 17 19 20
CPR at Sector, dB 9 7 7

Mechanical Specifications

Wind Loading @ Velocity, frontal 257.0 N @ 150 km/h (57.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 277 mm | 10.906 in
Depth, packed 188 mm | 7.402 in
Length, packed 1442 mm | 56.772 in
Weight, gross 11.5 kg | 25.353 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
