RRV4Q4-65D-R7

20-port sector antenna,4 x 694-960 MHz (R1-R2), and 8 x 1695-2690 MHz (Y1-Y4) 65° HPBW, 8 x 2300-3800 MHz (P1), 90° HPBW, 7 x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Includes 1x 4-Column Array for 2300-3800MHz and calibration port. Column spacing optimized to support Soft Split Beamforming
  • Q4 array uses M-LOC cluster connectors
  • Seven internal RETs control the antenna arrays
  • New aerodynamic endcaps for wind load optimization

General Specifications

Antenna Type Sector- and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 44.5 kg | 98.106 lb
TDD Column Spacing 58 mm | 2.283 in

Array Layout

Click on image to enlarge.

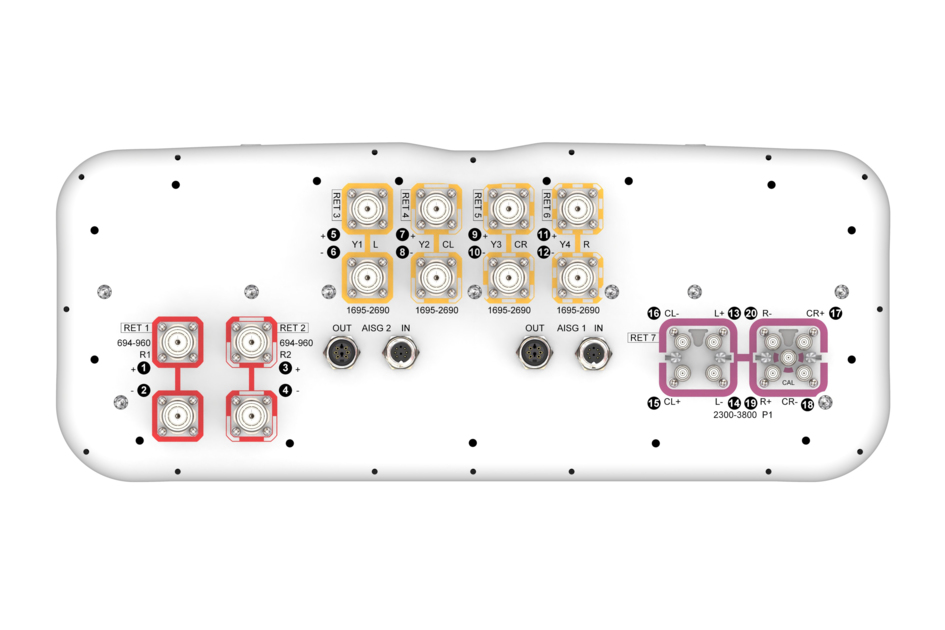

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1-R2 R1-R2 R1-R2 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
RF Port 1-4 1-4 1-4 5-12 5-12 5-12 13-20 13-20
Gain, dBi 15.8 16.2 16.4 15.8 17.0 17.6 15.9 16.6
Gain at Mid Tilt, dBi 15.6 16.0 16.3 15.6 16.7 17.4 15.2 16.0
Beamwidth, Horizontal, degrees 71 64 63 70 62 59 88 64
Beamwidth, Vertical, degrees 8.9 8 7.3 7.4 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 30 30 30 30 30 30 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 75 75

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain by all Beam Tilts, average, dBi 15.5 15.8 16.1 15.4 16.5 17.1 15.1 15.9
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.4 ±0.5 ±0.7 ±0.6 ±1.1 ±1
Gain by Beam Tilt, average, dBi 2 ° | 15.4
7 ° | 15.6
12 ° | 15.4		 2 ° | 15.6
7 ° | 16.0
12 ° | 15.8		 2 ° | 16.0
7 ° | 16.3
12 ° | 15.8		 2 ° | 15.3
7 ° | 15.6
12 ° | 15.3		 2 ° | 16.3
7 ° | 16.7
12 ° | 16.3		 2 ° | 16.9
7 ° | 17.4
12 ° | 16.9		 2 ° | 14.9
7 ° | 15.2
12 ° | 15.0		 2 ° | 15.4
7 ° | 16.0
12 ° | 16.0
Beamwidth, Horizontal Tolerance, degrees ±6 ±4 ±3 ±5 ±7 ±6 ±18 ±12
Beamwidth, Vertical Tolerance, degrees ±0.4 ±0.6 ±0.3 ±0.5 ±0.6 ±0.4 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 17 17 15 16 16 11 11
Front-to-Back Total Power at 180° ± 30°, dB 22 22 22 26 25 26 24 23
CPR at Boresight, dB 20 20 18 19 21 20 16 16
CPR at Sector, dB 12 9 12 8 6 3 8 5

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 17.7 17.4
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 25
USLS (First Lobe), dB 14 15

Electrical Specifications, Envelope Pattern

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.4 21.8
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 27
USLS (First Lobe), dB 15 15

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.8
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.0 19.9
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 25

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.7
Beamwidth, Horizontal, degrees 30
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 18

Mechanical Specifications

Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 65 kg | 143.300 lb

General Specifications

Antenna Type Sector- and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 44.5 kg | 98.106 lb
TDD Column Spacing 58 mm | 2.283 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1-R2 R1-R2 R1-R2 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
RF Port 1-4 1-4 1-4 5-12 5-12 5-12 13-20 13-20
Gain, dBi 15.8 16.2 16.4 15.8 17.0 17.6 15.9 16.6
Gain at Mid Tilt, dBi 15.6 16.0 16.3 15.6 16.7 17.4 15.2 16.0
Beamwidth, Horizontal, degrees 71 64 63 70 62 59 88 64
Beamwidth, Vertical, degrees 8.9 8 7.3 7.4 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 30 30 30 30 30 30 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 75 75

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain by all Beam Tilts, average, dBi 15.5 15.8 16.1 15.4 16.5 17.1 15.1 15.9
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.4 ±0.5 ±0.7 ±0.6 ±1.1 ±1
Gain by Beam Tilt, average, dBi 2 ° | 15.4; 7 ° | 15.6;12 ° | 15.4 2 ° | 15.6; 7 ° | 16.0;12 ° | 15.8 2 ° | 16.0; 7 ° | 16.3;12 ° | 15.8 2 ° | 15.3; 7 ° | 15.6;12 ° | 15.3 2 ° | 16.3; 7 ° | 16.7;12 ° | 16.3 2 ° | 16.9; 7 ° | 17.4;12 ° | 16.9 2 ° | 14.9; 7 ° | 15.2;12 ° | 15.0 2 ° | 15.4; 7 ° | 16.0;12 ° | 16.0
Beamwidth, Horizontal Tolerance, degrees ±6 ±4 ±3 ±5 ±7 ±6 ±18 ±12
Beamwidth, Vertical Tolerance, degrees ±0.4 ±0.6 ±0.3 ±0.5 ±0.6 ±0.4 ±0.5 ±0.3
USLS, beampeak to 20° above beampeak, dB 16 17 17 15 16 16 11 11
Front-to-Back Total Power at 180° ± 30°, dB 22 22 22 26 25 26 24 23
CPR at Boresight, dB 20 20 18 19 21 20 16 16
CPR at Sector, dB 12 9 12 8 6 3 8 5

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 17.7 17.4
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 25
USLS (First Lobe), dB 14 15

Electrical Specifications, Envelope Pattern

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.4 21.8
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 28 27
USLS (First Lobe), dB 15 15

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.8
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.0 19.9
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 25

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.7
Beamwidth, Horizontal, degrees 30
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 18

Mechanical Specifications

Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 65 kg | 143.300 lb
Click on image to enlarge.
Click on image to enlarge.

Assembly Drawing

Outline Drawing

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

RRV4Q4-65D-R7 Product specifications
RRV4Q4-65D-R7 Product specifications (Comprehensive)

Assembly Drawing

Outline Drawing

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

RRV4Q4-65D-R7 Product specifications
RRV4Q4-65D-R7 Product specifications (Comprehensive)
