RRZZVVQ4Q4-65DR8V4

28-port sector antenna,4 x 694-960 MHz (R1,R2), 4 x 1695-2690 MHz (Y1,Y4) and 4 x 1427-2690 MHz (Y2,Y3) , 65° HPBW, 16 x 2300-3800 MHz (P1,P2), 90° HPBW, 8 x RET

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Q4 array uses MQ4/5 cluster connectors
New aerodynamic endcaps for wind load optimization
Eight internal RETs control the antenna arrays
Two broadband beamforming arrays for 2300-3800 MHz, each with a calibration port

Specifications

General Specifications

Antenna Type	Sector and beamforming
Band	Multiband
Calibration Connector Interface	MQ5
Calibration Connector Quantity	2
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| MQ4 \| MQ5
RF Connector Location	Bottom
RF Connector Quantity, high band	16
RF Connector Quantity, mid band	8
RF Connector Quantity, low band	4
RF Connector Quantity, total	28

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2688 mm \| 105.827 in
Net Weight, antenna only	56.5 kg \| 124.561 lb

Array Layout

Click on image to enlarge.

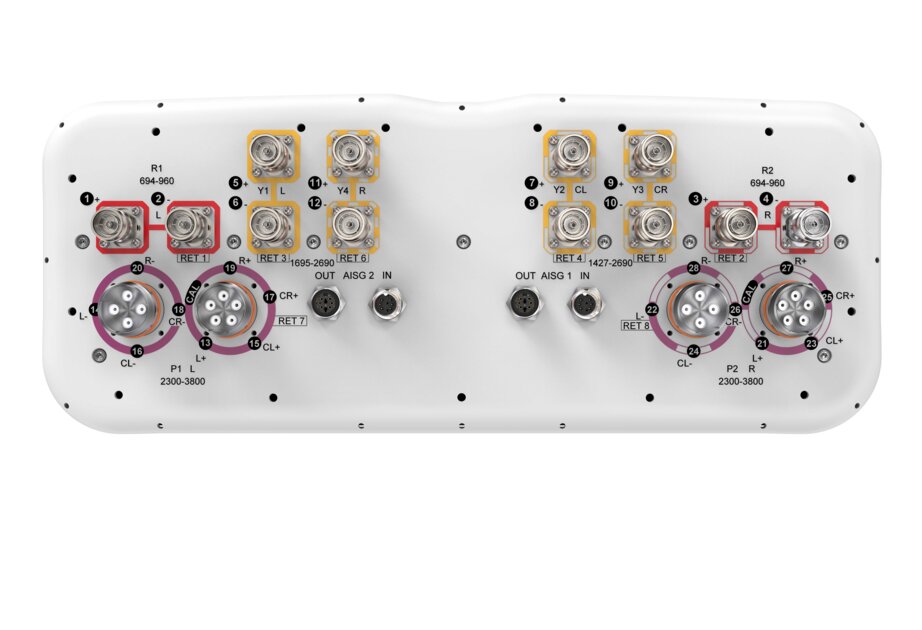

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1427 – 2690 MHz \| 1695 – 2690 MHz \| 2300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	1,600 W @ 50 °C

Electrical Specifications

	R1,R2	R1,R2	R1,R2	Y1,Y4	Y1,Y4	Y1,Y4	Y1,Y4	Y2,Y3	Y2,Y3	Y2,Y3	Y2,Y3	Y2,Y3	P1,P2	P1,P2	P1,P2	P1,P2
Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
RF Port	1,2,3,4	1,2,3,4	1,2,3,4	5,6,11,12	5,6,11,12	5,6,11,12	5,6,11,12	7,8,9,10	7,8,9,10	7,8,9,10	7,8,9,10	7,8,9,10	13-28	13-28	13-28	13-28
Gain at Mid Tilt, dBi	15.8	16.1	16.1	16.7	17.8	18.2	18.3	15.5	17.0	17.9	18.2	18.2	14.2	15.0	15.6	15.8
Beamwidth, Horizontal, degrees	68	62	63	71	61	57	57	78	66	60	60	58	90	92	73	63
Beamwidth, Vertical, degrees	8.7	7.9	7.4	6.2	5.5	4.9	4.6	7.9	6.4	5.7	5	4.7	6.2	5.7	5.4	5.4
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	18	20	19	17	18	20	20	17	17	17	18	19	11	13	12	13
Front-to-Back Ratio at 180°, dB	30	28	27	33	32	32	32	34	36	36	30	30	27	29	27	27
Coupling level, Amp, Antenna port to Cal port, dB													-26	-26	-26	-26
Coupling level, max Amp Δ, Antenna port to Cal port, dB													±2	±2	±2	±2
Coupler, max Amp Δ, Antenna port to Cal port, dB													0.9	0.9	0.9	0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees													7	7	7	7
Isolation, Cross Polarization, dB	28	28	28	25	25	25	25	25	25	25	25	25	23	23	23	23
Isolation, Inter-band, dB	28	28	28	25	25	25	25	25	25	25	25	25	25	25	25	25
Isolation, Co-polarization, dB													18	18	18	18
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-130	-130	-130	-130
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	200	200	250	250	250	200	200	75	75	75	75

Electrical Specifications, Broadcast 65

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Gain, dBi													17.1	18.0	16.9	17.0
Beamwidth, Horizontal at 3 dB, degrees													65	65	65	65
Beamwidth, Horizontal at 10 dB, degrees													117	110	115	114
Beamwidth, Vertical, degrees													6.1	5.7	5.4	5.4
Front-to-Back Total Power at 180° ± 30°, dB													24	25	22	23
USLS (First Lobe), dB													12	15	15	17

Electrical Specifications, Service Beam

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Steered 0° Gain, dBi													19.7	20.5	21.2	21.3
Steered 0° Beamwidth, Horizontal, degrees													27	25	19	18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB													27	28	27	28
Steered 0° Horizontal Sidelobe, dB													13	13	11	11
Steered 30° Gain, dBi													18.8	19.8	19.4	19.3
Steered 30° Beamwidth, Horizontal, degrees													29	28	22	19
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB													24	26	24	24

Electrical Specifications, Soft Split

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Gain, dBi													18.6	19.5
Beamwidth, Horizontal, degrees													33	31
Front-to-Back Total Power at 180° ± 30°, dB													25	27
Horizontal Sidelobe, dB													17	17

Mechanical Specifications

Wind Loading @ Velocity, frontal	944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	565 mm \| 22.244 in
Depth, packed	368 mm \| 14.488 in
Length, packed	2874 mm \| 113.150 in
Weight, gross	78 kg \| 171.960 lb

General Specifications

Antenna Type	Sector and beamforming
Band	Multiband
Calibration Connector Interface	MQ5
Calibration Connector Quantity	2
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| MQ4 \| MQ5
RF Connector Location	Bottom
RF Connector Quantity, high band	16
RF Connector Quantity, mid band	8
RF Connector Quantity, low band	4
RF Connector Quantity, total	28

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2688 mm \| 105.827 in
Net Weight, antenna only	56.5 kg \| 124.561 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1427 – 2690 MHz \| 1695 – 2690 MHz \| 2300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	1,600 W @ 50 °C

Electrical Specifications

	R1,R2	R1,R2	R1,R2	Y1,Y4	Y1,Y4	Y1,Y4	Y1,Y4	Y2,Y3	Y2,Y3	Y2,Y3	Y2,Y3	Y2,Y3	P1,P2	P1,P2	P1,P2	P1,P2
Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
RF Port	1,2,3,4	1,2,3,4	1,2,3,4	5,6,11,12	5,6,11,12	5,6,11,12	5,6,11,12	7,8,9,10	7,8,9,10	7,8,9,10	7,8,9,10	7,8,9,10	13-28	13-28	13-28	13-28
Gain at Mid Tilt, dBi	15.8	16.1	16.1	16.7	17.8	18.2	18.3	15.5	17.0	17.9	18.2	18.2	14.2	15.0	15.6	15.8
Beamwidth, Horizontal, degrees	68	62	63	71	61	57	57	78	66	60	60	58	90	92	73	63
Beamwidth, Vertical, degrees	8.7	7.9	7.4	6.2	5.5	4.9	4.6	7.9	6.4	5.7	5	4.7	6.2	5.7	5.4	5.4
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	18	20	19	17	18	20	20	17	17	17	18	19	11	13	12	13
Front-to-Back Ratio at 180°, dB	30	28	27	33	32	32	32	34	36	36	30	30	27	29	27	27
Coupling level, Amp, Antenna port to Cal port, dB													-26	-26	-26	-26
Coupling level, max Amp Δ, Antenna port to Cal port, dB													±2	±2	±2	±2
Coupler, max Amp Δ, Antenna port to Cal port, dB													0.9	0.9	0.9	0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees													7	7	7	7
Isolation, Cross Polarization, dB	28	28	28	25	25	25	25	25	25	25	25	25	23	23	23	23
Isolation, Inter-band, dB	28	28	28	25	25	25	25	25	25	25	25	25	25	25	25	25
Isolation, Co-polarization, dB													18	18	18	18
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-153	-130	-130	-130	-130
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	200	200	250	250	250	200	200	75	75	75	75

Electrical Specifications, Broadcast 65

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Gain, dBi													17.1	18.0	16.9	17.0
Beamwidth, Horizontal at 3 dB, degrees													65	65	65	65
Beamwidth, Horizontal at 10 dB, degrees													117	110	115	114
Beamwidth, Vertical, degrees													6.1	5.7	5.4	5.4
Front-to-Back Total Power at 180° ± 30°, dB													24	25	22	23
USLS (First Lobe), dB													12	15	15	17

Electrical Specifications, Service Beam

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Steered 0° Gain, dBi													19.7	20.5	21.2	21.3
Steered 0° Beamwidth, Horizontal, degrees													27	25	19	18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB													27	28	27	28
Steered 0° Horizontal Sidelobe, dB													13	13	11	11
Steered 30° Gain, dBi													18.8	19.8	19.4	19.3
Steered 30° Beamwidth, Horizontal, degrees													29	28	22	19
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB													24	26	24	24

Electrical Specifications, Soft Split

Frequency Band, MHz	698–806	790–894	890–960	1695–1995	1920–2300	2300–2500	2490–2690	1427–1518	1695–1995	1920–2300	2300–2500	2490–2690	2300–2500	2490–2690	3300–3600	3600–3800
Gain, dBi													18.6	19.5
Beamwidth, Horizontal, degrees													33	31
Front-to-Back Total Power at 180° ± 30°, dB													25	27
Horizontal Sidelobe, dB													17	17

Mechanical Specifications

Wind Loading @ Velocity, frontal	944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)
