RVVPX303.6F12R2

6-port sector antenna, 2x 694–960 and 4x 1710–2690 MHz, 65° HPBW, fixed electrical tilt (12°) low band, 2x RET on both high band arrays with a separate pair of AISG Input and Output ports per array.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Radiator Material Brass | Low loss circuit board
Reflector Material Aluminum

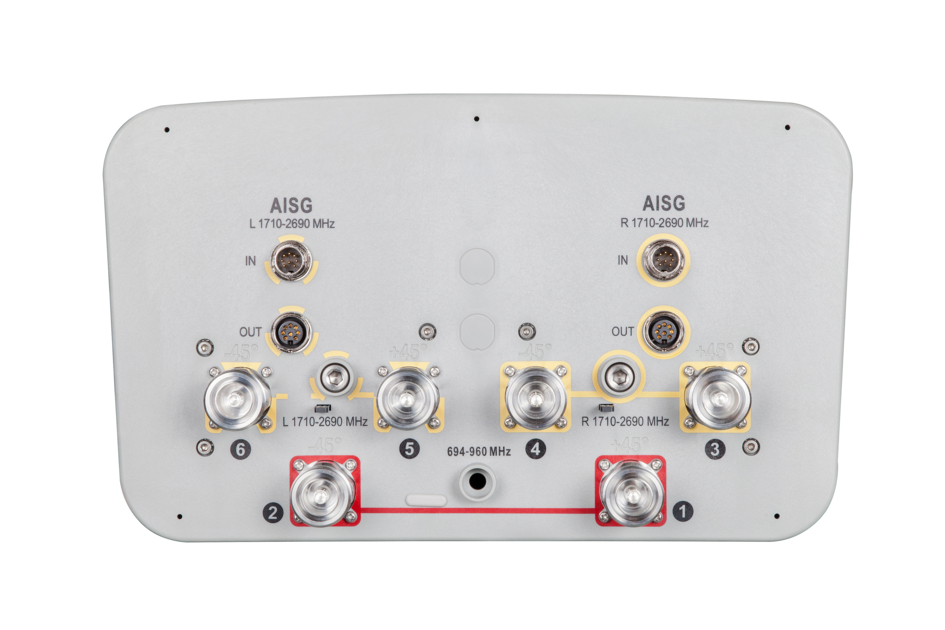

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 353 mm | 13.898 in
Depth 209 mm | 8.228 in
Length 919 mm | 36.181 in
Net Weight, without mounting kit 13.3 kg | 29.321 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1710 – 2690 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1710–1920 1920–2170 2300–2690
Gain, dBi 11.7 11.8 12.1 14.8 15.3 16.1
Beamwidth, Horizontal, degrees 69 69 61 62 63 62
Beamwidth, Vertical, degrees 30.6 29.1 26.1 13.7 12.1 9.6
Beam Tilt, degrees 12 12 12 0–10 0–10 0–10
USLS (First Lobe), dB 15 16 13 19 16 15
Front-to-Back Ratio at 180°, dB 26 22 25 29 32 31
CPR at Boresight, dB 17 18 19 20 18 17
CPR at Sector, dB 13 8 5 7 5 5
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0 1.43 | 15.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 300 250 250 250

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1710–1920 1920–2170 2300–2690
Gain by all Beam Tilts, average, dBi 11.5 11.5 11.7 14.6 14.9 15.8
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.4 ±0.4 ±0.4 ±0.5
Gain by Beam Tilt, average, dBi 0 ° | 14.5
5 ° | 14.5
10 ° | 14.6
0 ° | 14.9
5 ° | 14.9
10 ° | 15.0
0 ° | 15.9
5 ° | 15.8
10 ° | 15.5
Beamwidth, Horizontal Tolerance, degrees ±1.4 ±2.4 ±1.6 ±2.5 ±3.8 ±5.1
Beamwidth, Vertical Tolerance, degrees ±1.7 ±2.6 ±2.8 ±0.8 ±1 ±0.9
USLS, beampeak to 20° above beampeak, dB 17 16 14 19 18 15
Front-to-Back Total Power at 180° ± 30°, dB 26 22 23 24 26 25
CPR at Boresight, dB 18 19 19 22 20 18
CPR at Sector, dB 14 8 6 8 5 5

Mechanical Specifications

Wind Loading @ Velocity, frontal 383.0 N @ 150 km/h (86.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 135.0 N @ 150 km/h (30.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 393.0 N @ 150 km/h (88.3 lbf @ 150 km/h)
Wind Speed, maximum 250 km/h (155 mph)

Packaging and Weights

Width, packed 430 mm | 16.929 in
Depth, packed 330 mm | 12.992 in
Length, packed 1110 mm | 43.701 in
Weight, gross 27 kg | 59.525 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant, Compliant/Exempted
