SBNHH-1D45B

6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 45° HPBW, 3x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • Three internal RETs for independent tilt on all three bands
  • The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum

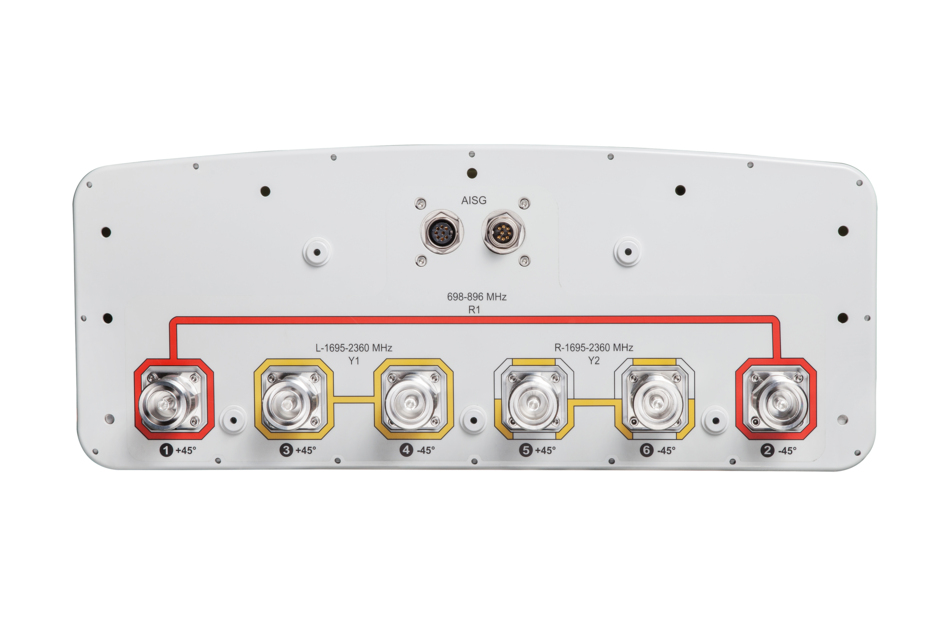

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 1829 mm | 72.008 in
Net Weight, without mounting kit 29.2 kg | 64.375 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 16.9 17.6 19.6 20.1 20.5 21.0
Beamwidth, Horizontal, degrees 47 43 45 42 42 39
Beamwidth, Vertical, degrees 12.4 11.4 5.8 5.3 5.1 4.5
Beam Tilt, degrees 0–14 0–14 0–8 0–8 0–8 0–8
USLS (First Lobe), dB 16 16 18 17 17 16
Front-to-Back Ratio at 180°, dB 34 33 35 37 37 39
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 350 350 350 350 350 300

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 16.6 17.3 19.2 19.8 20.1 20.8
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.5 ±0.4 ±0.5 ±0.4
Gain by Beam Tilt, average, dBi 0 ° | 16.6
7 ° | 16.7
14 ° | 16.4
0 ° | 17.3
7 ° | 17.4
14 ° | 17.1
0 ° | 19.3
4 ° | 19.3
8 ° | 19.0
0 ° | 19.9
4 ° | 19.9
8 ° | 19.6
0 ° | 20.1
4 ° | 20.2
8 ° | 20.0
0 ° | 20.7
4 ° | 20.9
8 ° | 20.4
Beamwidth, Horizontal Tolerance, degrees ±1.5 ±2.8 ±2.1 ±1.7 ±1 ±1.7
Beamwidth, Vertical Tolerance, degrees ±0.8 ±0.6 ±0.3 ±0.2 ±0.4 ±0.1
USLS, beampeak to 20° above beampeak, dB 19 23 16 15 16 16
Front-to-Back Total Power at 180° ± 30°, dB 24 24 28 30 31 30
CPR at Boresight, dB 28 29 23 24 20 19
CPR at 10 dB Horizontal Beamwidth, dB 13 17 13 13 13 13

Mechanical Specifications

Effective Projective Area (EPA), frontal 1 m² | 10.764 ft²
Effective Projective Area (EPA), lateral 0.21 m² | 2.26 ft²
Mechanical Tilt Range 0°–13°
Wind Loading @ Velocity, frontal 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 935.0 N @ 150 km/h (210.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 567 mm | 22.323 in
Depth, packed 311 mm | 12.244 in
Length, packed 1950 mm | 76.772 in
Weight, gross 40.1 kg | 88.405 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
