DB380-E-5083

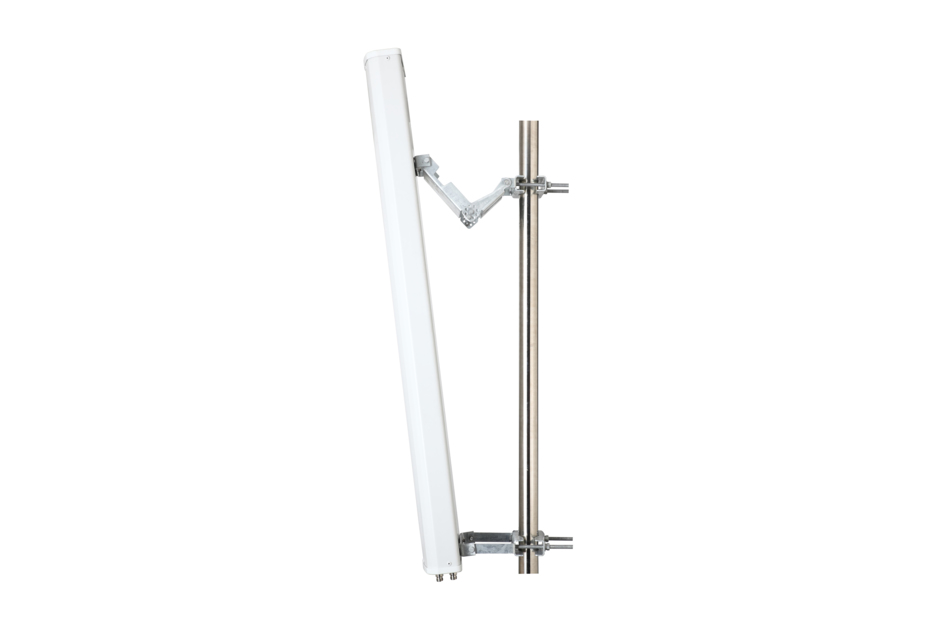

Wide Profile Antenna Downtilt and Uptilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains one scissor top bracket set and one bottom bracket set.
Specifications
Specifications
Product Classification
| Product Type | Downtilt and uptilt mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 5.5 kg | 12.125 lb |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 5.6 kg | 12.346 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Downtilt and uptilt mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 5.5 kg | 12.125 lb |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 5.6 kg | 12.346 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
