DPT-408-APE-15M
- Available in:
- North America

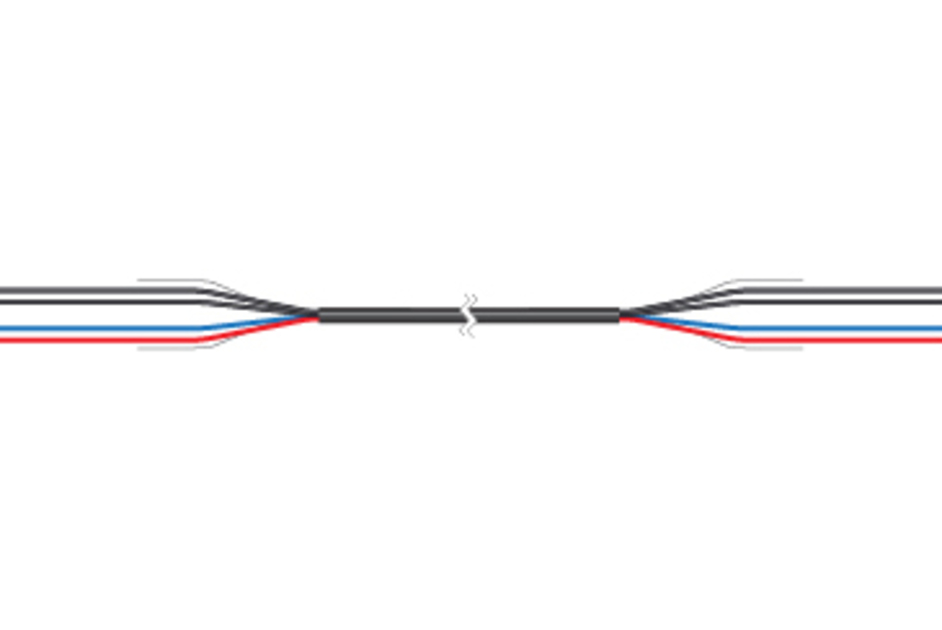

HELIAX® 408 Power Cable, 4 conductor 8 AWG, 15 m
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | DPT |
| Ordering Note | CommScope® non-standard product | CommScope® standard product in Asia Pacific |
General Specifications
| Cable Type | Power |
| Conductors, quantity | 4 |
| Construction Type | Discrete power cable |
| Jacket Color | Black |
| Supported Application | Industrial |
Dimensions
| Cable Length | 14.935 m | 49 ft |
| Diameter Over Dielectric | 4.409 mm | 0.1736 in |
| Diameter Over Jacket, nominal | 18.39 mm | 0.724 in |
| Diameter Over Shield | 15.469 mm | 0.609 in |
| Jacket Thickness | 1.549 mm | 0.061 in |
| Conductor Gauge, singles | 8 AWG |
Electrical Specifications
| Conductor dc Resistance | 2.133 ohms/km | 0.65 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material Specifications
| Conductor Material | Bare copper |
| Insulation Material, singles | PVC |
| Jacket Material | MDPE |
| Shield (Tape) Material | Corrugated aluminum |
Environmental Specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
Packaging and Weights
| Cable weight | 526.810 kg/km | 354 lb/kft |
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | DPT |
| Ordering Note | CommScope® non-standard product | CommScope® standard product in Asia Pacific |
General Specifications
| Cable Type | Power |
| Conductors, quantity | 4 |
| Construction Type | Discrete power cable |
| Jacket Color | Black |
| Supported Application | Industrial |
Dimensions
| Cable Length | 14.935 m | 49 ft |
| Diameter Over Dielectric | 4.409 mm | 0.1736 in |
| Diameter Over Jacket, nominal | 18.39 mm | 0.724 in |
| Diameter Over Shield | 15.469 mm | 0.609 in |
| Jacket Thickness | 1.549 mm | 0.061 in |
| Conductor Gauge, singles | 8 AWG |
Electrical Specifications
| Conductor dc Resistance | 2.133 ohms/km | 0.65 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material Specifications
| Conductor Material | Bare copper |
| Insulation Material, singles | PVC |
| Jacket Material | MDPE |
| Shield (Tape) Material | Corrugated aluminum |
Environmental Specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
Packaging and Weights
| Cable weight | 526.810 kg/km | 354 lb/kft |
