L2TDM-PL

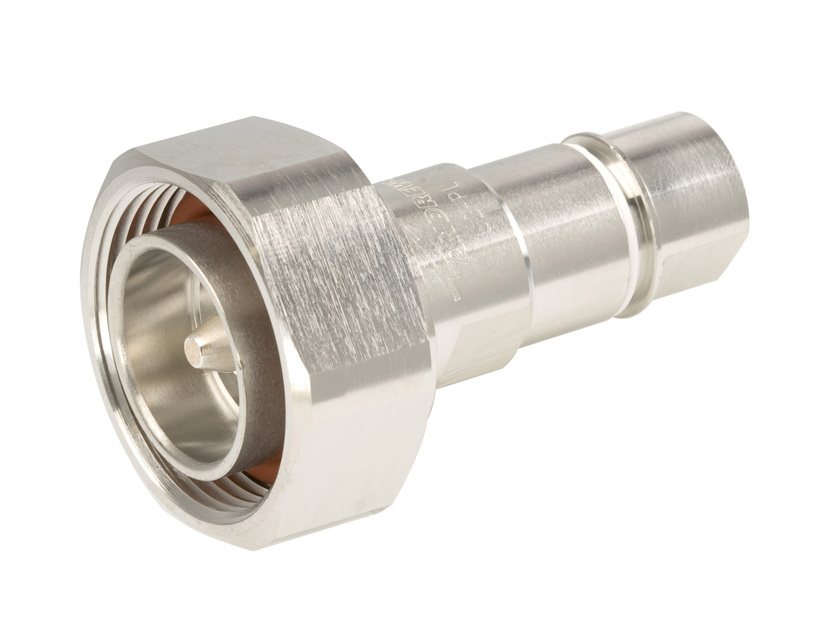

7-16 DIN Male Positive Lock for 3/8 in LDF2-50 cable
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | LDF2-50 |
General Specifications
| Body Style | Straight |
| Cable Family | LDF2-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 34.54 mm | 1.360 in |
| Width | 34.54 mm | 1.360 in |
| Length | 51.31 mm | 2.020 in |
| Diameter | 34.54 mm | 1.360 in |
| Nominal Size | 3/8 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.7 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 10000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 15.6 kW |
| RF Operating Voltage, maximum (vrms) | 894 V |
| Shielding Effectiveness | -110 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–960 MHz | 1.027 | 37.51 |
| 960–2200 MHz | 1.058 | 31.00 |
| 2200–2700 MHz | 1.065 | 30.04 |
| 2700–4000 MHz | 1.083 | 27.99 |
| 4000–6000 MHz | 1.089 | 27.41 |
| 6000–8000 MHz | 1.089 | 27.41 |
| 8000–10000 MHz | 1.360 | 16.50 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 671.68 N | 151.000 lbf |
| Connector Retention Torque | 2.7 N-m | 23.897 in lb |
| Coupling Nut Proof Torque | 35 N-m | 309.776 in lb |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Insertion Force | 199.99 N | 44.960 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 102.12 g | 0.225 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | LDF2-50 |
General Specifications
| Body Style | Straight |
| Cable Family | LDF2-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 34.54 mm | 1.360 in |
| Width | 34.54 mm | 1.360 in |
| Length | 51.31 mm | 2.020 in |
| Diameter | 34.54 mm | 1.360 in |
| Nominal Size | 3/8 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.7 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 10000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 15.6 kW |
| RF Operating Voltage, maximum (vrms) | 894 V |
| Shielding Effectiveness | -110 dB |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–960 MHz | 1.027 | 37.51 |
| 960–2200 MHz | 1.058 | 31.00 |
| 2200–2700 MHz | 1.065 | 30.04 |
| 2700–4000 MHz | 1.083 | 27.99 |
| 4000–6000 MHz | 1.089 | 27.41 |
| 6000–8000 MHz | 1.089 | 27.41 |
| 8000–10000 MHz | 1.360 | 16.50 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 671.68 N | 151.000 lbf |
| Connector Retention Torque | 2.7 N-m | 23.897 in lb |
| Coupling Nut Proof Torque | 35 N-m | 309.776 in lb |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Insertion Force | 199.99 N | 44.960 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 102.12 g | 0.225 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
