7779139-00

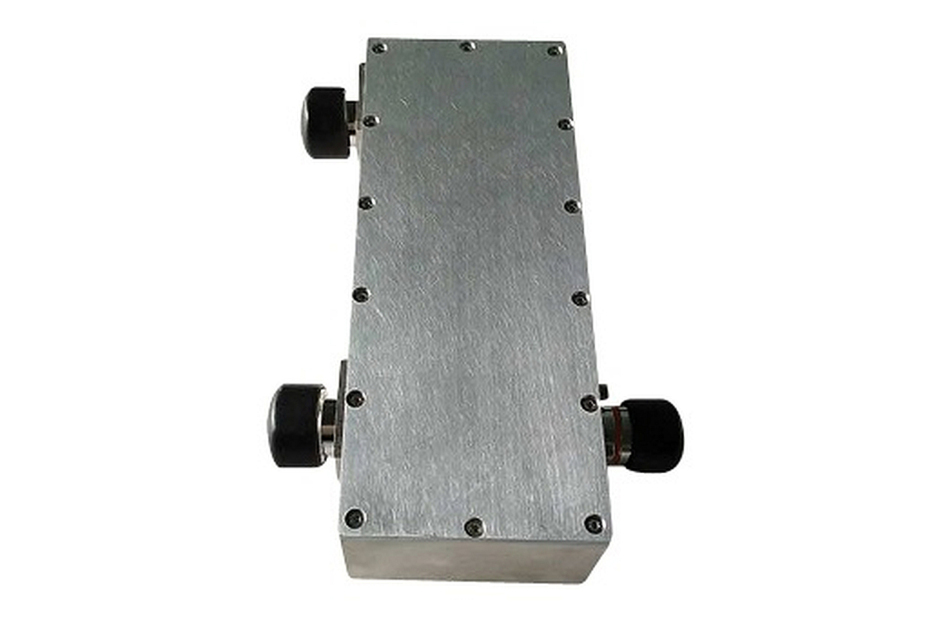

Diplexer for ERA® 614-896 & 1695-2200 MHz Outdoor Applications

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Diplexer
Product Brand ERA®

General Specifications

Application Outdoor
Input Connector Interface 4.3-10 Male
Note Detailed Product Specifications are available. Please contact your local CommScope representative.
Output Connector Interface 4.3-10 Female

Dimensions

Height 178 mm | 7.008 in
Width 69 mm | 2.717 in
Depth 41 mm | 1.614 in

Electrical Specifications

Insertion Loss, maximum 0.25 dB
Return Loss, minimum 23 dB
Average Power, maximum 1 W
Impedance 50 ohm
Intermodulation -155dBc @ 2 x +30dBm CW (3rd Order)
Isolation, maximum 40 dB
Operating Frequency Band 614 – 896 MHz | 1695 – 2200 MHz
Passband Ripple, Tolerance ± 0.7 dB
Peak Power, maximum 0.01 kW

Environmental Specifications

Ingress Protection Test Method IEC 60529:2001, IP65

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
