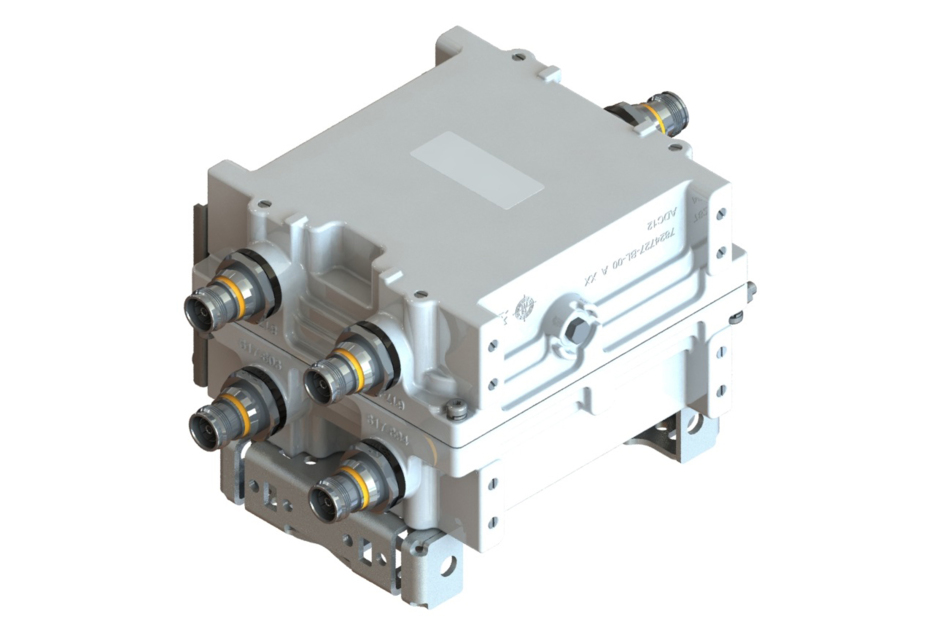

CDX68T-DS-43 | E14F05P91

Twin Diplexer 617-803/817-894 MHz, DC Sense, 4.3-10

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Automatic dc switching with dc sense
  • Convertible mounting brackets
  • Stackable in multiples with included hardware

Product Classification

Product Type Diplexer

General Specifications

Color Gray
Common Port Label Common
Modularity 2-Twin
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 4.3-10 Female
RF Connector Interface Body Style Long neck

Dimensions

Height 181 mm | 7.126 in
Width 165 mm | 6.496 in
Depth 121 mm | 4.764 in
Ground Screw Diameter 6 mm | 0.236 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass CEL 850 | USA 600 | USA 700 | USA 750

Electrical Specifications, Common Port

Composite Power, RMS 200 W

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method Auto sensing
dc/AISG Pass-through Path See logic table
Lightning Surge Current 10 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications, AISG

AISG Carrier 2176 KHz ± 100 ppm
Insertion Loss, maximum 1 dB
Return Loss, minimum 15 dB

Electrical Specifications

Sub-module 1 | 2 1 | 2 1 | 2 1 | 2
Branch 1 1 2 2
Port Designation 617–803 617-803 817–894 817-894
License Band USA 600, Band Pass
USA 700, Band Pass
USA 750, Band Pass
USA 600, Band Pass
USA 700, Band Pass
USA 750, Band Pass
CEL 850, Band Pass CEL 850, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 617–798 798–803 817–824 824–894
Insertion Loss, maximum, dB 0.35 0.50 0.60 0.40
Insertion Loss, typical, dB 0.20 0.30 0.45 0.30
Total Group Delay, maximum, ns 40 60 65 40
Return Loss, minimum, dB 20 20
Return Loss, typical, dB 23 23
Isolation, typical, dB 50 40 40 50
Input Power, RMS, maximum, W 200 200
Input Power, PEP, maximum, W 2,000 2,000
3rd Order PIM, minimum, dBc -161 -161
3rd Order PIM Test Method 2 x 20 W CW tones 2 x 20 W CW tones

Block Diagram

Click on image to enlarge.

Logic Table

Click on image to enlarge.

Environmental Specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity 5%–100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Mounting Hardware Weight 0.5 kg | 1.102 lb
Volume 3.7 L
Weight, without mounting hardware 5 kg | 11.023 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type Diplexer

General Specifications

Color Gray
Common Port Label Common
Modularity 2-Twin
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 4.3-10 Female
RF Connector Interface Body Style Long neck

Dimensions

Height 181 mm | 7.126 in
Width 165 mm | 6.496 in
Depth 121 mm | 4.764 in
Ground Screw Diameter 6 mm | 0.236 in

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass CEL 850 | USA 600 | USA 700 | USA 750

Electrical Specifications, Common Port

Composite Power, RMS 200 W

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method Auto sensing
dc/AISG Pass-through Path See logic table
Lightning Surge Current 10 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications, AISG

AISG Carrier 2176 KHz ± 100 ppm
Insertion Loss, maximum 1 dB
Return Loss, minimum 15 dB

Electrical Specifications

Sub-module 1 | 2 1 | 2 1 | 2 1 | 2
Branch 1 1 2 2
Port Designation 617–803 617-803 817–894 817-894
License Band USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass CEL 850, Band Pass CEL 850, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 617–798 798–803 817–824 824–894
Insertion Loss, maximum, dB 0.35 0.50 0.60 0.40
Insertion Loss, typical, dB 0.20 0.30 0.45 0.30
Total Group Delay, maximum, ns 40 60 65 40
Return Loss, minimum, dB 20 20
Return Loss, typical, dB 23 23
Isolation, typical, dB 50 40 40 50
Input Power, RMS, maximum, W 200 200
Input Power, PEP, maximum, W 2,000 2,000
3rd Order PIM, minimum, dBc -161 -161
3rd Order PIM Test Method 2 x 20 W CW tones 2 x 20 W CW tones

Environmental Specifications

Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity 5%–100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Mounting Hardware Weight 0.5 kg | 1.102 lb
Volume 3.7 L
Weight, without mounting hardware 5 kg | 11.023 lb
Click on image to enlarge.
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
