CTX6826T-DS-43 | E14F10P49

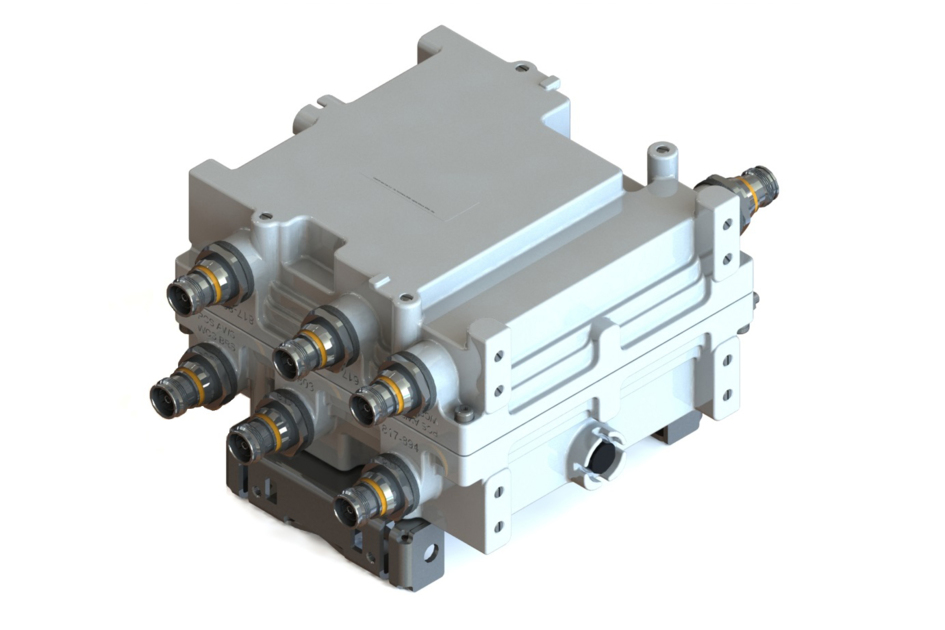

Twin Triplexer 600/800/AWS-PCS-WCS-BRS, DC Sense, 4.3-10
Features and Benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
- Automatic dc switching with dc sense
- BTS-to-feeder and feeder-to-antenna application
- Convertible mounting brackets
- DC Load Sense in Feeder-to-Antenna applications
Specifications
Product Classification
| Product Type | Triplexer |
General Specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 200 mm | 7.874 in |
| Width | 200 mm | 7.874 in |
| Depth | 127 mm | 5 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | CEL 850 | DCS 1800 | IMT 2100 | LMR 800 | PCS 1900 | TDD 2600 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical Specifications, Common Port
| Composite Power, RMS | 250 W |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical Specifications, AISG
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical Specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 617–803 | 817-894 | 1695-2690 |
| License Band | USA 600, Band Pass USA 700, Band Pass USA 750, Band Pass | CEL 850, Band Pass LMR 800, Band Pass | AWS 1700, Band Pass PCS 1900, Band Pass TDD 2600, Band Pass WCS 2300, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 617–803 | 817–894 | 1695–2200 (12) 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.30 | 0.10 |
| Total Group Delay, maximum, ns | 60 | 65 | 25 |
| Return Loss, typical, dB | 22 | 22 | 22 |
| Isolation, typical, dB | 50 | 50 | 65 |
| Input Power, RMS, maximum, W | 120 | 120 | 120 |
| Input Power, PEP, maximum, W | 1,200 | 1,200 | 1,200 |
| 3rd Order PIM, minimum, dBc | -161 | -161 | -161 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |
Block Diagram
| Click on image to enlarge. |
Logic Table
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | 5%–100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 5.1 L |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Triplexer |
General Specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 200 mm | 7.874 in |
| Width | 200 mm | 7.874 in |
| Depth | 127 mm | 5 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | CEL 850 | DCS 1800 | IMT 2100 | LMR 800 | PCS 1900 | TDD 2600 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical Specifications, Common Port
| Composite Power, RMS | 250 W |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical Specifications, AISG
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical Specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 617–803 | 817-894 | 1695-2690 |
| License Band | USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass | CEL 850, Band Pass; LMR 800, Band Pass | AWS 1700, Band Pass; PCS 1900, Band Pass; TDD 2600, Band Pass; WCS 2300, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 617–803 | 817–894 | 1695–2200 (12); 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.30 | 0.10 |
| Total Group Delay, maximum, ns | 60 | 65 | 25 |
| Return Loss, typical, dB | 22 | 22 | 22 |
| Isolation, typical, dB | 50 | 50 | 65 |
| Input Power, RMS, maximum, W | 120 | 120 | 120 |
| Input Power, PEP, maximum, W | 1,200 | 1,200 | 1,200 |
| 3rd Order PIM, minimum, dBc | -161 | -161 | -161 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | 5%–100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 5.1 L |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
