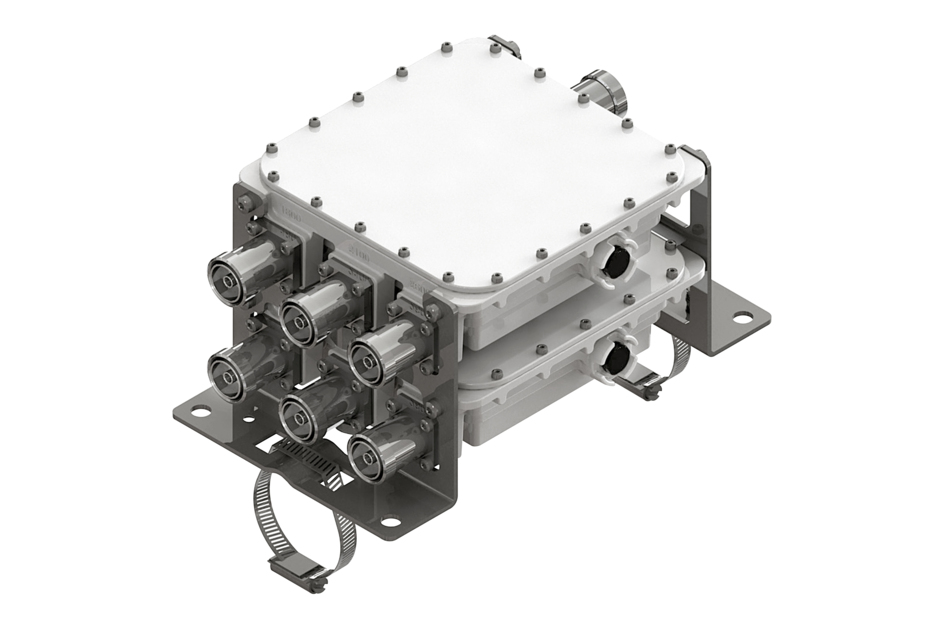

E11F01P8191

2X Triplexer 1710-1880/1920-2170/2300-2690, dc/AISG blocking on all ports

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Industry leading PIM performance
  • Twin configuration
  • Designed for network Modernization, introduction of LTE2300 on existing site
  • Designed for network Modernization, introduction of LTE2600 on existing site
  • dc/AISG blocking on all ports

Product Classification

Product Type Triplexer

General Specifications

Product Family CBC182126
Color Gray
Common Port Label COMM
Modularity 2-Twin
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 7-16 DIN Female
RF Connector Interface Body Style Long neck

Dimensions

Height 182.5 mm | 7.185 in
Width 129 mm | 5.079 in
Depth 173.5 mm | 6.831 in
Mounting Pipe Diameter Range 40–140 mm

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 | TDD 2600 | WCS 2300

Electrical Specifications, dc Power/Alarm

Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications

Sub-module 1 | 2 1 | 2 1 | 2
Branch 1 2 3
Port Designation 1800 2100 2300-2600
License Band DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass
TDD 2300, Band Pass
TDD 2600, Band Pass
WCS 2300, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 1710–1880 1920–2170 2300–2690
Insertion Loss, maximum, dB 0.30 0.30 0.30
Insertion Loss, typical, dB 0.25 0.25 0.20
Return Loss, minimum, dB 18 18 18
Return Loss, typical, dB 20 20 20
Isolation, minimum, dB 50 50 50
Input Power, RMS, maximum, W 300 300 300
3rd Order PIM, typical, dBc -160 -160 -160
3rd Order PIM Test Method Two +43 dBm carriers Two +43 dBm carriers Two +43 dBm carriers

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Relative Humidity Up to 100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Volume 3.9 L
Weight, net 6.2 kg | 13.669 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Product Type Triplexer

General Specifications

Product Family CBC182126
Color Gray
Common Port Label COMM
Modularity 2-Twin
Mounting Pole | Wall
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 7-16 DIN Female
RF Connector Interface Body Style Long neck

Dimensions

Height 182.5 mm | 7.185 in
Width 129 mm | 5.079 in
Depth 173.5 mm | 6.831 in
Mounting Pipe Diameter Range 40–140 mm

Electrical Specifications

Impedance 50 ohm
License Band, Band Pass DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 | TDD 2600 | WCS 2300

Electrical Specifications, dc Power/Alarm

Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications

Sub-module 1 | 2 1 | 2 1 | 2
Branch 1 2 3
Port Designation 1800 2100 2300-2600
License Band DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass; TDD 2300, Band Pass; TDD 2600, Band Pass; WCS 2300, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz 1710–1880 1920–2170 2300–2690
Insertion Loss, maximum, dB 0.30 0.30 0.30
Insertion Loss, typical, dB 0.25 0.25 0.20
Return Loss, minimum, dB 18 18 18
Return Loss, typical, dB 20 20 20
Isolation, minimum, dB 50 50 50
Input Power, RMS, maximum, W 300 300 300
3rd Order PIM, typical, dBc -160 -160 -160
3rd Order PIM Test Method Two +43 dBm carriers Two +43 dBm carriers Two +43 dBm carriers

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Relative Humidity Up to 100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Included Mounting hardware
Volume 3.9 L
Weight, net 6.2 kg | 13.669 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
