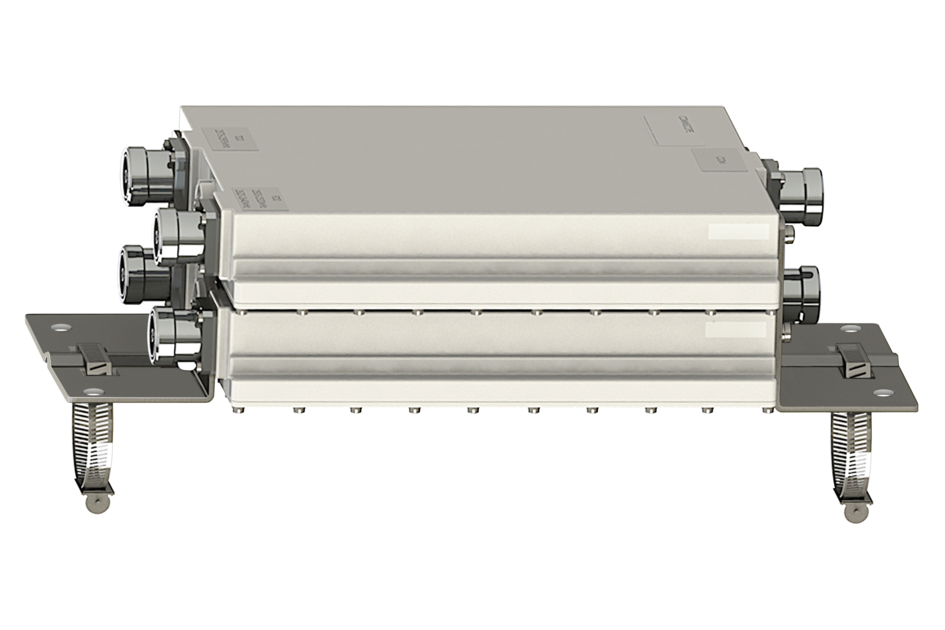

E11F02P1750

Twin Diplexer, FDD/TDD 2600, dc pass on all ports

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Twin configuration

Specifications

Product Classification

Product Type

Diplexer

General Specifications

Product Family	CBC2526
Color	Gray
Common Port Label	COM
Modularity	2-Twin
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	7-16 DIN Female
RF Connector Interface Body Style	Medium neck

Dimensions

Height	270 mm \| 10.63 in
Width	239 mm \| 9.409 in
Depth	105 mm \| 4.134 in
Mounting Pipe Diameter Range	42.6–122 mm

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
License Band, Band Pass	IMT 2600 \| TDD 2600

Electrical Specifications, Common Port

Composite Power, RMS

200 W

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method	Factory set
dc/AISG Pass-through Path	Branch 1 \| Branch 2
dc/AISG Pass-through, combiner	Branch 1 \| Branch 2
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2
Lightning Surge Current	3 kA
Lightning Surge Current Waveform	10/350 waveform

Electrical Specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	FDD 2500-2520/2620-2640	TDD 2572.5-2602.5
License Band	IMT 2600, Band Pass	TDD 2600, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz	2500–2520 2620–2640	2572.5–2602.5
Insertion Loss, maximum, dB	0.90	1.20
Insertion Loss, typical, dB	0.70	1.00
Return Loss, minimum, dB	18	18
Isolation, minimum, dB	85	85

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Ingress Protection Test Method	IEC 60529:2001, IP67

Packaging and Weights

Included	Mounting hardware
Volume	6.1 L
Weight, net	8.6 kg \| 18.96 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted

Product Classification

Product Type

Diplexer

General Specifications

Product Family	CBC2526
Color	Gray
Common Port Label	COM
Modularity	2-Twin
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	7-16 DIN Female
RF Connector Interface Body Style	Medium neck

Dimensions

Height	270 mm \| 10.63 in
Width	239 mm \| 9.409 in
Depth	105 mm \| 4.134 in
Mounting Pipe Diameter Range	42.6–122 mm

Electrical Specifications

Impedance	50 ohm
License Band, Band Pass	IMT 2600 \| TDD 2600

Electrical Specifications, Common Port

Composite Power, RMS

200 W

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Method	Factory set
dc/AISG Pass-through Path	Branch 1 \| Branch 2
dc/AISG Pass-through, combiner	Branch 1 \| Branch 2
dc/AISG Pass-through, demultiplexer	Branch 1 \| Branch 2
Lightning Surge Current	3 kA
Lightning Surge Current Waveform	10/350 waveform

Electrical Specifications

Sub-module	1 \| 2	1 \| 2
Branch	1	2
Port Designation	FDD 2500-2520/2620-2640	TDD 2572.5-2602.5
License Band	IMT 2600, Band Pass	TDD 2600, Band Pass

Electrical Specifications, Band Pass

Frequency Range, MHz	2500–2520; 2620–2640	2572.5–2602.5
Insertion Loss, maximum, dB	0.90	1.20
Insertion Loss, typical, dB	0.70	1.00
Return Loss, minimum, dB	18	18
Isolation, minimum, dB	85	85

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Corrosion Test Method	IEC 60068-2-11, 30 days
Ingress Protection Test Method	IEC 60529:2001, IP67

Packaging and Weights

Included	Mounting hardware
Volume	6.1 L
Weight, net	8.6 kg \| 18.96 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted
