TD-AWS-5-ABCD-F

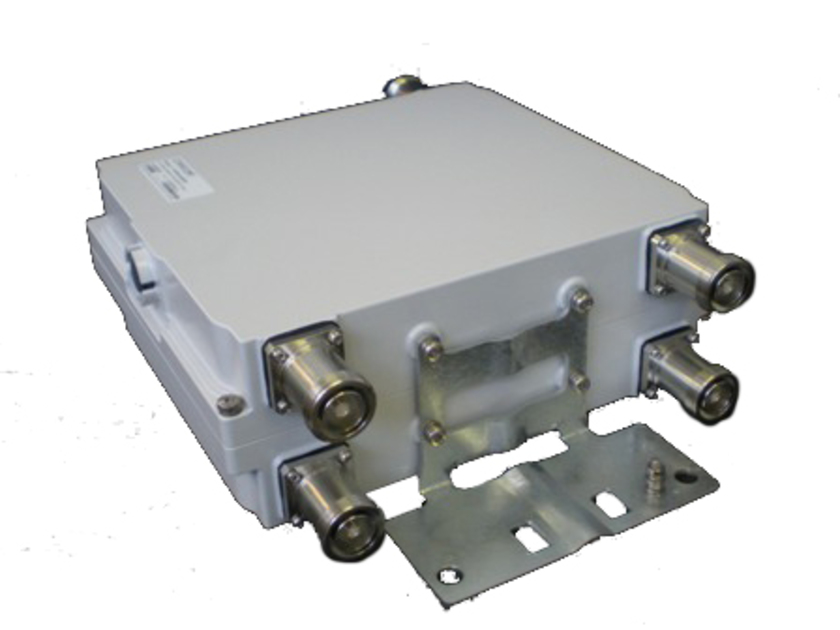

AWS Twin In-Band Diplexer Tuning version 5, AWS ABCD/F Bands with AISG/DC Sense
Specifications
Product Classification
| Product Type | Diplexer |
General Specifications
| Application | Indoor | Outdoor |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
| Rx Interface | 7-16 DIN Female |
Dimensions
| Height | 231 mm | 9.094 in |
| Width | 265 mm | 10.433 in |
| Depth | 96 mm | 3.78 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications, Rx (Uplink)
| Frequency Band | 1710 – 1739.75 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 28 dB |
Electrical Specifications 2, Rx (Uplink)
| Frequency Band | 1745.25 – 1759.75 MHz |
| Isolation, minimum | 28 dB |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical Specifications, Tx (Downlink)
| Frequency Band | 2110 – 2139.75 MHz |
| Isolation, minimum | 28 dB |
| Input Power, PEP, maximum | 5000 W |
| Total Group Delay, maximum | 60 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical Specifications 2, Tx (Downlink)
| Frequency Band | 2145.25 – 2159.75 MHz |
| Input Power, PEP, maximum | 5000 W |
| Insertion Loss, typical | 0.8 dB |
| Isolation, minimum | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 60 ns |
Block Diagram
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Brackets |
| Weight, without mounting hardware | 8.3 kg | 18.298 lb |
Product Classification
| Product Type | Diplexer |
General Specifications
| Application | Indoor | Outdoor |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
| Rx Interface | 7-16 DIN Female |
Dimensions
| Height | 231 mm | 9.094 in |
| Width | 265 mm | 10.433 in |
| Depth | 96 mm | 3.78 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical Specifications, Rx (Uplink)
| Frequency Band | 1710 – 1739.75 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 28 dB |
Electrical Specifications 2, Rx (Uplink)
| Frequency Band | 1745.25 – 1759.75 MHz |
| Isolation, minimum | 28 dB |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical Specifications, Tx (Downlink)
| Frequency Band | 2110 – 2139.75 MHz |
| Isolation, minimum | 28 dB |
| Input Power, PEP, maximum | 5000 W |
| Total Group Delay, maximum | 60 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical Specifications 2, Tx (Downlink)
| Frequency Band | 2145.25 – 2159.75 MHz |
| Input Power, PEP, maximum | 5000 W |
| Insertion Loss, typical | 0.8 dB |
| Isolation, minimum | 28 dB |
| Return Loss, minimum | 18 dB |
| Total Group Delay, maximum | 60 ns |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Brackets |
| Weight, without mounting hardware | 8.3 kg | 18.298 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
