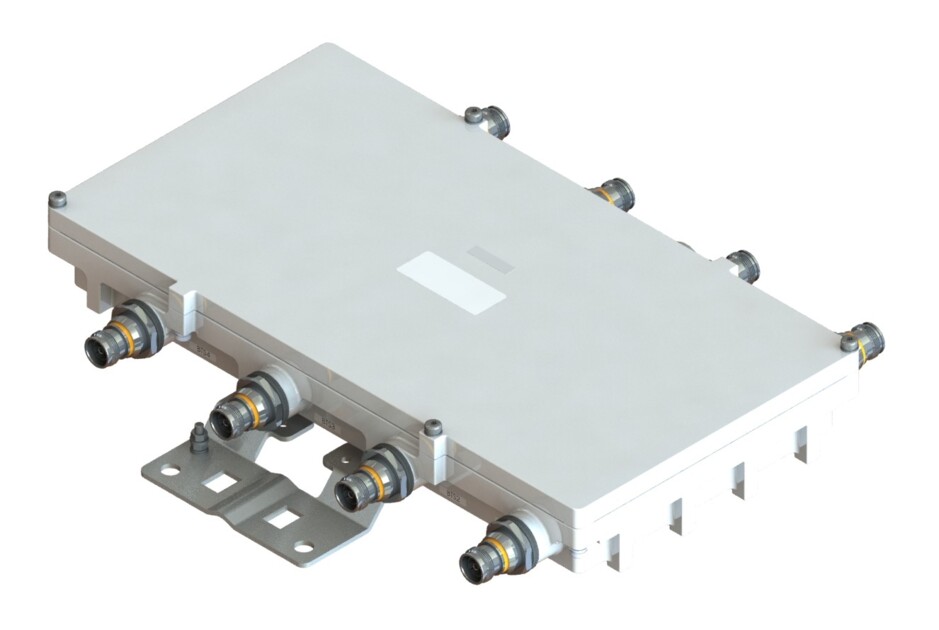

E14V00P58

Interference Mitigation Filter with pass band 2575-2615 MHz

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • New 4.3-10 connectors for improved PIM performance and size reduction

Product Classification

Product Type Interference mitigation filter

General Specifications

Modularity 4-Quad
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 4.3-10 Female
RF Inputs, quantity 4
RF Outputs, quantity 4

Dimensions

Height 52 mm | 2.047 in
Width 214 mm | 8.425 in
Depth 402 mm | 15.827 in
Ground Screw Diameter 5 mm | 0.197 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Path No dc/AISG pass-through
Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications, Band Pass

Sub-module 1 | 2 1 | 2 1 | 2
Frequency Range, MHz 2575–2615
Insertion Loss, typical, dB 0.50
Return Loss, typical, dB 20
Input Power, RMS, maximum, W 250
Input Power, PEP, maximum, W 1,000
3rd Order PIM, typical, dBc -150
3rd Order PIM Test Method 2 x 20 W CW tones

Electrical Specifications, Band Reject

Sub-module 1 | 2 1 | 2 1 | 2
Frequency Range, MHz 2500–2570 2620–2690
Attenuation, minimum, dB 38.0 38.0

Block Diagram

Click on image to enlarge.

Environmental Specifications

Operating Temperature -40 °C to +55 °C (-40 °F to +131 °F)
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Volume 4.5
Weight, net 6.8 kg | 14.991 lb
Weight, without mounting hardware 6.3 kg | 13.889 lb

Product Classification

Product Type Interference mitigation filter

General Specifications

Modularity 4-Quad
Mounting Pipe Hardware Band clamps (2)
RF Connector Interface 4.3-10 Female
RF Inputs, quantity 4
RF Outputs, quantity 4

Dimensions

Height 52 mm | 2.047 in
Width 214 mm | 8.425 in
Depth 402 mm | 15.827 in
Ground Screw Diameter 5 mm | 0.197 in

Electrical Specifications, dc Power/Alarm

dc/AISG Pass-through Path No dc/AISG pass-through
Lightning Surge Current 5 kA
Lightning Surge Current Waveform 8/20 waveform

Electrical Specifications, Band Pass

Sub-module 1 | 2 1 | 2 1 | 2
Frequency Range, MHz 2575–2615
Insertion Loss, typical, dB 0.50
Return Loss, typical, dB 20
Input Power, RMS, maximum, W 250
Input Power, PEP, maximum, W 1,000
3rd Order PIM, typical, dBc -150
3rd Order PIM Test Method 2 x 20 W CW tones

Electrical Specifications, Band Reject

Sub-module 1 | 2 1 | 2 1 | 2
Frequency Range, MHz 2500–2570 2620–2690
Attenuation, minimum, dB 38.0 38.0

Environmental Specifications

Operating Temperature -40 °C to +55 °C (-40 °F to +131 °F)
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Volume 4.5
Weight, net 6.8 kg | 14.991 lb
Weight, without mounting hardware 6.3 kg | 13.889 lb
