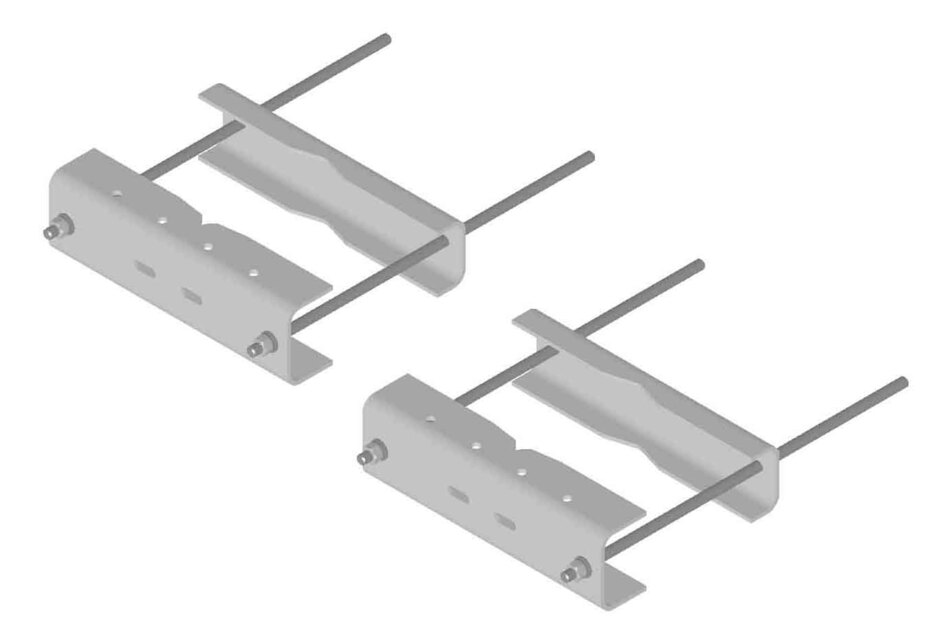

SM-U2016
Universal Saddle Mount for straight or tapered legs up to 16 in OD, 16 in angle 60°, or 12 in angle 90°
Specifications
Product Classification
| Product Type | Saddle mount |
General Specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Length | 508 mm | 20 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Saddle mount |
General Specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Length | 508 mm | 20 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 50.8 mm | 2 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
