PG-CS08

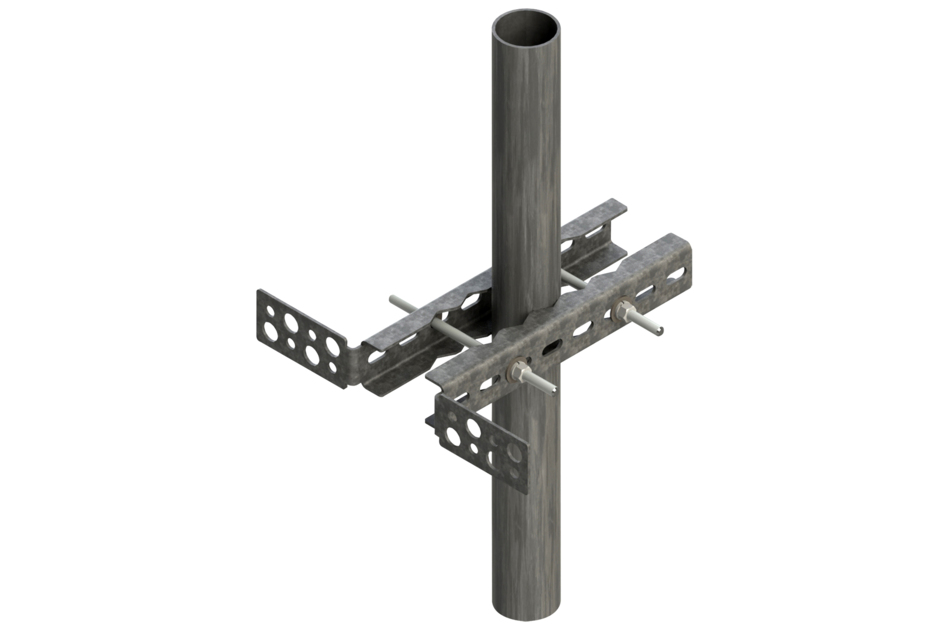

PIM-guard Antenna and RRU Cable Support Bracket with 8 ports for stackable hangers (up to 3 per port). Install with torque wrench set at 10 to 15 ft-lb to meet carrier PIM requirements.For patents, see www.cs-pat.com
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 8
Hole, quantity 8
Mounting Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD

Dimensions

Height 55.88 mm | 2.2 in
Width 248.92 mm | 9.8 in
Length 317.5 mm | 12.5 in
Mounting Diameter, maximum 60.96 mm | 2.4 in
Mounting Diameter, minimum 114.3 mm | 4.5 in
Hole Size 3/4 in | 7/16 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Packaging quantity 1
Weight, net 4.1 kg | 9.039 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Support bracket
Product Brand PIM-guard

General Specifications

Cable Runs, quantity 8
Hole, quantity 8
Mounting Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD

Dimensions

Height 55.88 mm | 2.2 in
Width 248.92 mm | 9.8 in
Length 317.5 mm | 12.5 in
Mounting Diameter, maximum 60.96 mm | 2.4 in
Mounting Diameter, minimum 114.3 mm | 4.5 in
Hole Size 3/4 in | 7/16 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Packaging quantity 1
Weight, net 4.1 kg | 9.039 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
