MD-S4

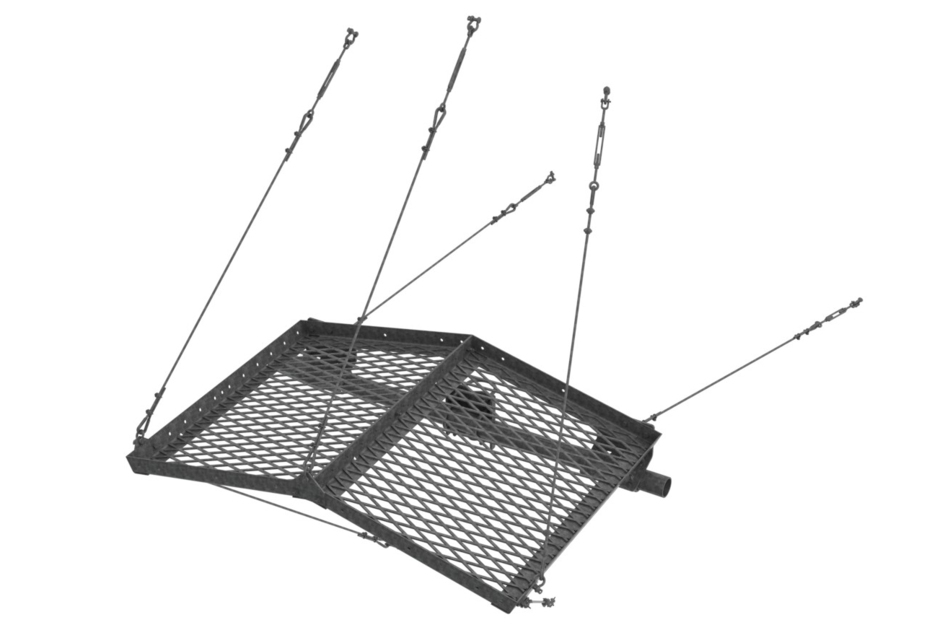

Microwave Antenna Ice Shield for 4 ft antennas
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Ice canopies and shields

General Specifications

Mounting Pipe, 114.3 mm (4-1/2 in) OD
Note Contact 828-324-2200 or 1-800-982-1708 (toll free), or your local CommScope representative | Custom lightweight or additional sizes available

Dimensions

Height 1219.2 mm | 48 in
Width 1905 mm | 75 in
Length 355.6 mm | 14 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Ice shield
Packaging quantity 1
Weight, net 118.5 kg | 261.247 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Ice canopies and shields

General Specifications

Mounting Pipe, 114.3 mm (4-1/2 in) OD
Note Contact 828-324-2200 or 1-800-982-1708 (toll free), or your local CommScope representative | Custom lightweight or additional sizes available

Dimensions

Height 1219.2 mm | 48 in
Width 1905 mm | 75 in
Length 355.6 mm | 14 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Ice shield
Packaging quantity 1
Weight, net 118.5 kg | 261.247 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
