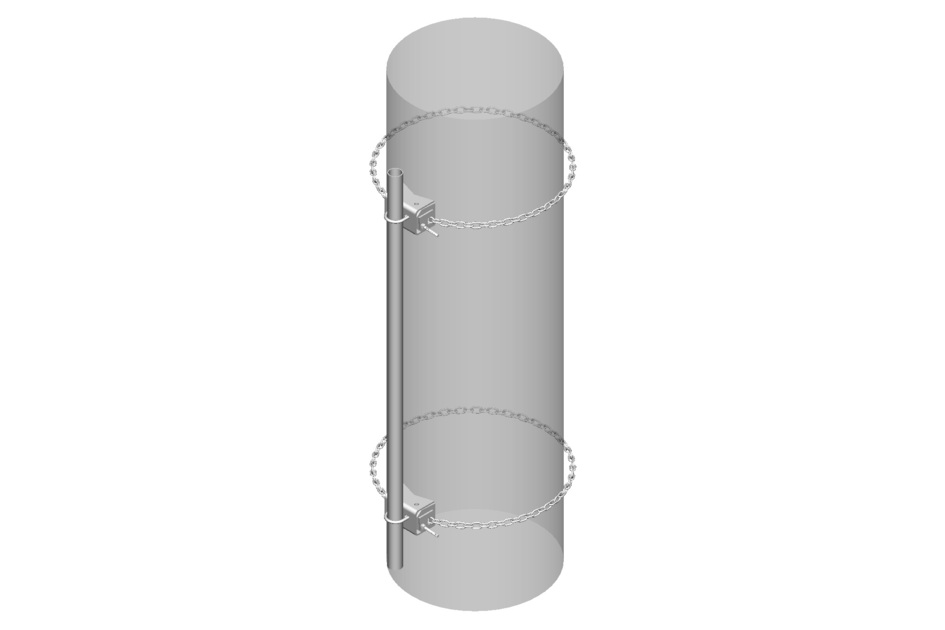

CML-30S-96

Chain Mount Base Kit, 14 in stand-off, 8 ft chain, includes pipe

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Product Type Chain mount kit

General Specifications

Chains, quantity 2
Pipe, quantity 1
Sectors, quantity 1

Dimensions

Height 2438.400 mm | 96 in
Width 203.2 mm | 8 in
Length 152.4 mm | 6 in
Chain Length 2400.3 mm | 94.5 in
Pipe Length 2438.400 mm | 96 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 203.2 mm | 8 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 635 mm | 25 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Criteria One 96 in x 10 in panel antenna per sector
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Brackets | Chains | Hardware | Pipe
Packaging quantity 1
Weight, net 43.9 kg | 96.783 lb

Product Classification

Product Type Chain mount kit

General Specifications

Chains, quantity 2
Pipe, quantity 1
Sectors, quantity 1

Dimensions

Height 2438.400 mm | 96 in
Width 203.2 mm | 8 in
Length 152.4 mm | 6 in
Chain Length 2400.3 mm | 94.5 in
Pipe Length 2438.400 mm | 96 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 203.2 mm | 8 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 635 mm | 25 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Criteria One 96 in x 10 in panel antenna per sector
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Brackets | Chains | Hardware | Pipe
Packaging quantity 1
Weight, net 43.9 kg | 96.783 lb

Assembly Drawing

Chain Mount Base Kit, 14 in Stand-off, 8 ft chain
