MC-RMHD-1545-4
Base Product: RING-MOUNTS

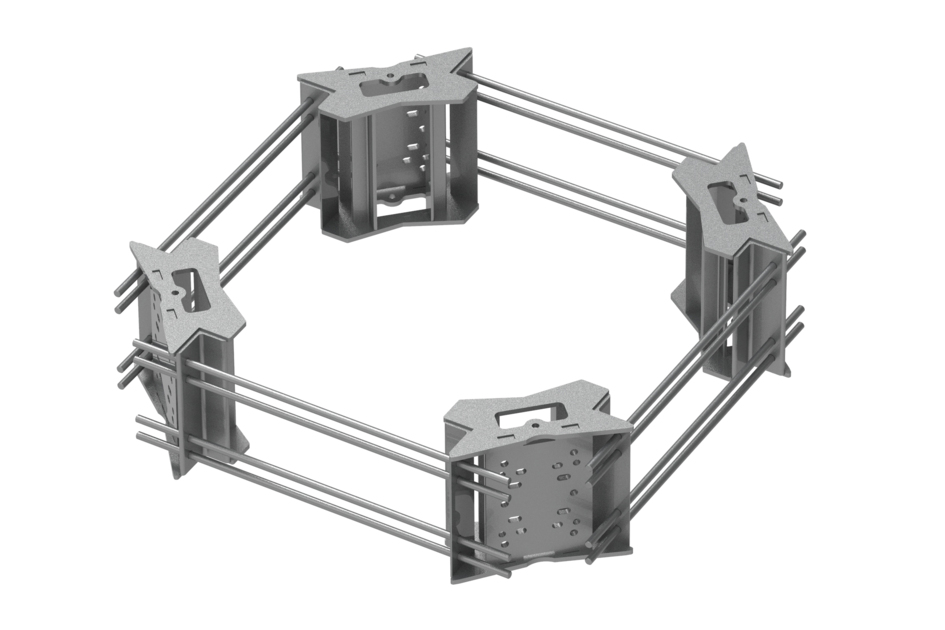

Universal Ring Mount, Heavy Duty 4-sector, 12 in to 45 in OD
Specifications
Product Classification
| Product Type | Universal ring mount |
General Specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 4 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 183.796 kg | 405.2 lb |
Product Classification
| Product Type | Universal ring mount |
General Specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 4 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 183.796 kg | 405.2 lb |
