SF-HPM-B

Base Product: T-ARMS

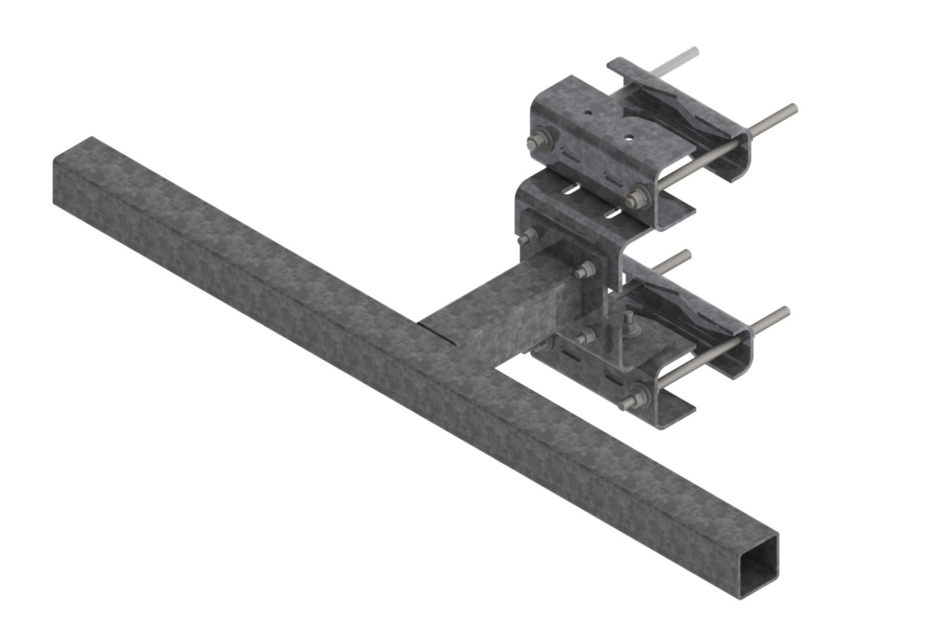

Heavy Duty Square T-Arm Base Kit, 2-7/8" OD pipe ordered separately

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Co-location dual pipe mount kit

General Specifications

Mounting Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD
Pipe, quantity 0
Tower Taper Non-tapered | Tapered

Dimensions

Height 355.6 mm | 14 in
Face Width 1.676 m | 5.5 ft
Width 1676.4 mm | 66 in
Mounting Diameter, maximum 203.2 mm | 8 in
Mounting Diameter, minimum 38.100 mm | 1.5 in
Stand-off Distance 508 mm | 20 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Clamps | Frame | Pipe mounts | Saddle mounts
Packaging quantity 1
Weight, net 63.412 kg | 139.8 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Product Type Co-location dual pipe mount kit

General Specifications

Mounting Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD
Pipe, quantity 0
Tower Taper Non-tapered | Tapered

Dimensions

Height 355.6 mm | 14 in
Face Width 1.676 m | 5.5 ft
Width 1676.4 mm | 66 in
Mounting Diameter, maximum 203.2 mm | 8 in
Mounting Diameter, minimum 38.100 mm | 1.5 in
Stand-off Distance 508 mm | 20 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Clamps | Frame | Pipe mounts | Saddle mounts
Packaging quantity 1
Weight, net 63.412 kg | 139.8 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
