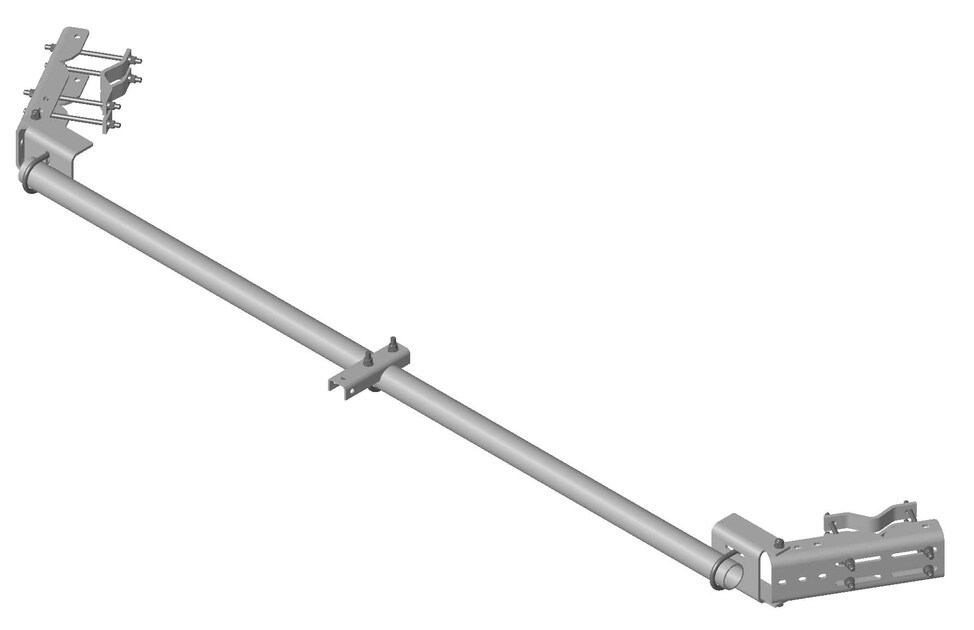

MD-CS-10R
Tower Face Mounted Microwave Antenna Channel Support Kit, 120 in, includes pipe
Specifications
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 3048 mm | 120 in |
| Length | 203.2 mm | 8 in |
| Pipe Length | 3048 mm | 120 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Attachment hardware | Clamps | Pipes |
| Packaging quantity | 1 |
| Weight, net | 86.2 kg | 190.038 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 3048 mm | 120 in |
| Length | 203.2 mm | 8 in |
| Pipe Length | 3048 mm | 120 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Attachment hardware | Clamps | Pipes |
| Packaging quantity | 1 |
| Weight, net | 86.2 kg | 190.038 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
