3X-NHHSS-65A-R9B

30-ports tri-sector antenna, 6x 698-896, 12x 1695-2200 and 12x 3300-4000 MHz, 65° HPBW, 9x RETs, 6x SBTs.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Small size tri-sector macro cell canister antenna
  • Ideal for deploying low band, mid band and CBRS/C-Band in flagpoles and concealment solutions
  • Pole mounting kit not included. Separate pole mounting kit TS-MNT-TOP-370 available for pole diameter from 150mm (5.9 inch) to 273 mm (10.7 inch). Please check Optional Mounting Kits section for more details
  • 4.3-10 connectors used for low band and mid band ports, 2.2-5 connectors used for high band ports

General Specifications

Antenna Type DualPol® tri-sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 2.2-5 Female | 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 6
RF Connector Quantity, total 30

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Internal RET High band (3) | Low band (3) | Mid band (3)
Protocol 3GPP/AISG 2.0

Dimensions

Length 1446 mm | 56.929 in
Net Weight, antenna only 41 kg | 90.389 lb
Outer Diameter 370 mm | 14.567 in

Array Layout

Click on image to enlarge.

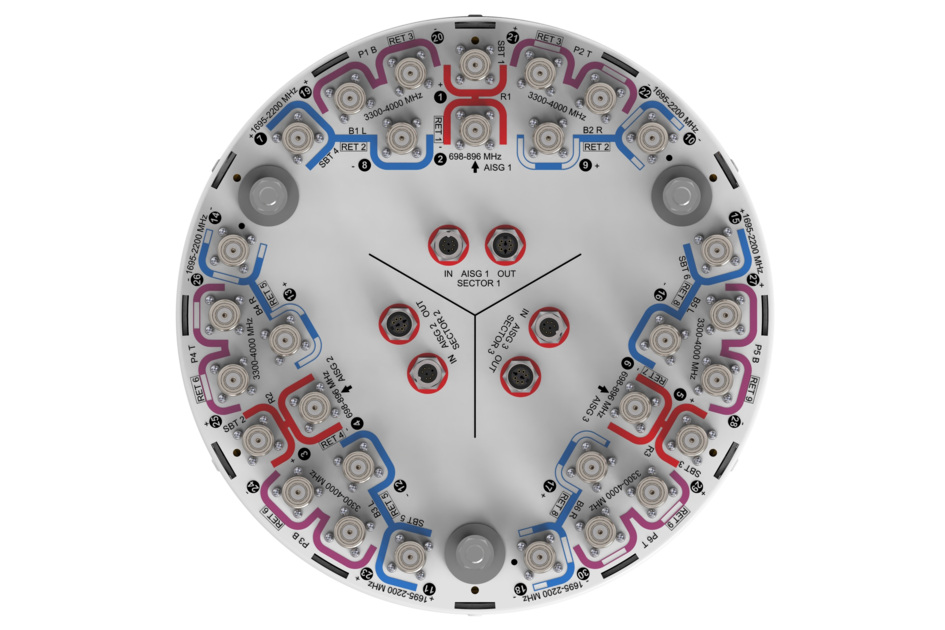

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3300 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 2,640 W

Electrical Specifications

R1-R3 R1-R3 Y1-Y6 Y1-Y6 Y1-Y6 P1-P6 P1-P6 P1-P6
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3300–3550 3550–3700 3700–4000
RF Port 1-6 1-6 7-18 7-18 7-18 19-30 19-30 19-30
Gain, dBi 13.4 13.6 16.7 17.1 17.4 15.8 15.6 14.8
Beamwidth, Horizontal, degrees 75 74 65 62 61 50 48 62
Beamwidth, Vertical, degrees 16.9 15 7.1 6.7 6.2 7.4 7 6.7
Beam Tilt, degrees 4–14 4–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 17 15 16 12 16 15 15
Front-to-Back Ratio at 180°, dB 29 30 30 30 30 30 30 30
Front-to-Back Total Power at 180° ± 30°, dB 23 23 24 26 26 30 30 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200 100 100 100

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3300–3550 3550–3700 3700–4000
Gain by all Beam Tilts, average, dBi 13.1 13.3 16.3 16.8 16.9 15.4 15.0 14.4
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.4 ±0.7 ±0.3 ±0.5 ±0.8 ±0.8 ±1.2
Beamwidth, Horizontal Tolerance, degrees ±1 ±2 ±3 ±2 ±7 ±9 ±14 ±17
Beamwidth, Vertical Tolerance, degrees ±1.1 ±0.9 ±0.4 ±0.3 ±0.6 ±0.6 ±0.5 ±0.5
CPR at Boresight, dB 20 19 17 19 21 13 13 15
CPR at Sector, dB 8 7 2 2 3 4 6 5

Mechanical Specifications

Wind Loading @ Velocity, frontal 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 478 mm | 18.819 in
Depth, packed 464 mm | 18.268 in
Length, packed 1784 mm | 70.236 in
Weight, gross 47.6 kg | 104.940 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type DualPol® tri-sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 2.2-5 Female | 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 6
RF Connector Quantity, total 30

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Internal RET High band (3) | Low band (3) | Mid band (3)
Protocol 3GPP/AISG 2.0

Dimensions

Length 1446 mm | 56.929 in
Net Weight, antenna only 41 kg | 90.389 lb
Outer Diameter 370 mm | 14.567 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3300 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 2,640 W

Electrical Specifications

R1-R3 R1-R3 Y1-Y6 Y1-Y6 Y1-Y6 P1-P6 P1-P6 P1-P6
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3300–3550 3550–3700 3700–4000
RF Port 1-6 1-6 7-18 7-18 7-18 19-30 19-30 19-30
Gain, dBi 13.4 13.6 16.7 17.1 17.4 15.8 15.6 14.8
Beamwidth, Horizontal, degrees 75 74 65 62 61 50 48 62
Beamwidth, Vertical, degrees 16.9 15 7.1 6.7 6.2 7.4 7 6.7
Beam Tilt, degrees 4–14 4–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 17 15 16 12 16 15 15
Front-to-Back Ratio at 180°, dB 29 30 30 30 30 30 30 30
Front-to-Back Total Power at 180° ± 30°, dB 23 23 24 26 26 30 30 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200 100 100 100

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3300–3550 3550–3700 3700–4000
Gain by all Beam Tilts, average, dBi 13.1 13.3 16.3 16.8 16.9 15.4 15.0 14.4
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.4 ±0.7 ±0.3 ±0.5 ±0.8 ±0.8 ±1.2
Beamwidth, Horizontal Tolerance, degrees ±1 ±2 ±3 ±2 ±7 ±9 ±14 ±17
Beamwidth, Vertical Tolerance, degrees ±1.1 ±0.9 ±0.4 ±0.3 ±0.6 ±0.6 ±0.5 ±0.5
CPR at Boresight, dB 20 19 17 19 21 13 13 15
CPR at Sector, dB 8 7 2 2 3 4 6 5

Mechanical Specifications

Wind Loading @ Velocity, frontal 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 478 mm | 18.819 in
Depth, packed 464 mm | 18.268 in
Length, packed 1784 mm | 70.236 in
Weight, gross 47.6 kg | 104.940 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant/Exempted
