NHHSS-65C-R2B
10-port sector antenna, 2x 698–896, 4x 1695–2200 and 4x 3100-4200 MHz, 65° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt
Specifications
Features and Benefits
- Perfect antenna to add 3.5GHz CBRS to macro sites
- Low band and mid band performance mirrors the performance of existing NHH hex port antennas
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- One LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x MIMO
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 28 kg | 61.729 lb |
Array Layout
| Click on image to enlarge. |

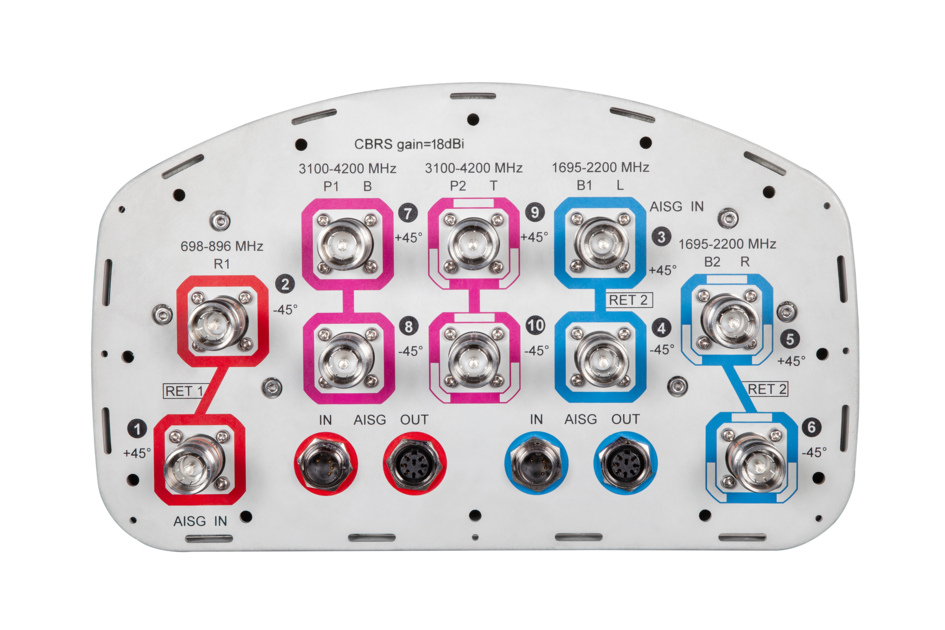

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain, dBi | 15.9 | 16.1 | 17.4 | 17.8 | 18.1 | 17.5 | 17.1 | 17.0 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 68 | 65 | 64 | 59 | 66 | 65 |
| Beamwidth, Vertical, degrees | 8.9 | 7.9 | 5.6 | 5.3 | 5 | 5.6 | 5.1 | 4.8 |
| Beam Tilt, degrees | 0–11 | 0–11 | 0–7 | 0–7 | 0–7 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 18 | 19 | 20 | 21 | 14 | 16 | 17 |
| Front-to-Back Ratio at 180°, dB | 30 | 34 | 30 | 32 | 32 | 30 | 36 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -140 | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 393.0 N @ 150 km/h (88.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 330.0 N @ 150 km/h (74.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 757.0 N @ 150 km/h (170.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and Weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 2571 mm | 101.221 in |
| Weight, gross | 40.5 kg | 89.287 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 28 kg | 61.729 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| Gain, dBi | 15.9 | 16.1 | 17.4 | 17.8 | 18.1 | 17.5 | 17.1 | 17.0 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 68 | 65 | 64 | 59 | 66 | 65 |
| Beamwidth, Vertical, degrees | 8.9 | 7.9 | 5.6 | 5.3 | 5 | 5.6 | 5.1 | 4.8 |
| Beam Tilt, degrees | 0–11 | 0–11 | 0–7 | 0–7 | 0–7 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 18 | 19 | 20 | 21 | 14 | 16 | 17 |
| Front-to-Back Ratio at 180°, dB | 30 | 34 | 30 | 32 | 32 | 30 | 36 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -140 | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 393.0 N @ 150 km/h (88.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 330.0 N @ 150 km/h (74.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 757.0 N @ 150 km/h (170.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and Weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 2571 mm | 101.221 in |
| Weight, gross | 40.5 kg | 89.287 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
