RRZZHHTT-65B-R7N43

16-port sector antenna, 4x 694–960, 4x 1427–2690, 4x 1695-2180 and 4x 2490-2690 MHz, 65° HPBW, 7x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
  • Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
  • Retractable tilt indicator rods
  • Antenna shape optimized for wind load reduction

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (5)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, antenna only 37.5 kg | 82.673 lb

Array Layout

Click on image to enlarge.

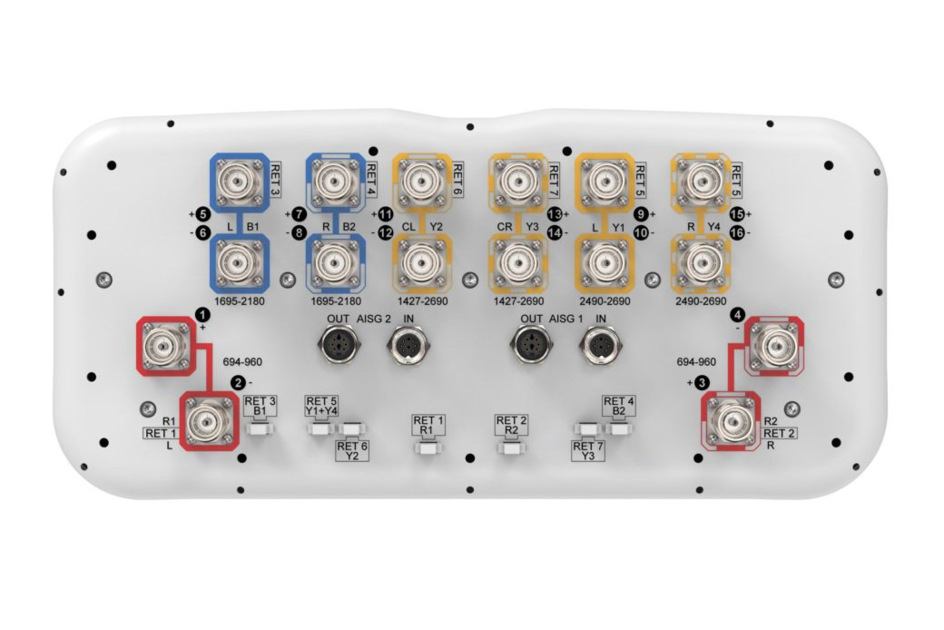

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,200 W @ 50 °C

Electrical Specifications

R1,R2 R1,R2 R1,R2 B1,B2 B1,B2 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 5,6,7,8 5,6,7,8 9,10,15,16 11,12,13,14 11,12,13,14 11,12,13,14 11,12,13,14 11,12,13,14
Beamwidth, Horizontal, degrees 66 60 57 69 65 60 69 66 64 63 58
Beamwidth, Vertical, degrees 10.4 9.4 8.7 5.6 5.3 4.4 6.8 5.6 5.2 4.7 4.4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 16 14 16 18 21 18 15 15 18 16
Front-to-Back Ratio at 180°, dB 31 32 32 32 30 31 32 35 33 33 34
Front-to-Back Total Power at 180° ± 30°, dB 23 22 21 25 25 22 21 27 27 27 27
CPR at Boresight, dB 20 19 18 21 23 22 20 19 19 21 18
Isolation, Cross Polarization, dB 27 27 27 27 27 27 26 26 26 26 26
Isolation, Inter-band, dB 27 27 27 27 27 27 27 27 27 27 27
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
Gain by all Beam Tilts, average, dBi 14.3 14.8 15.0 16.6 17.1 17.3 15.5 16.6 17.4 17.8 17.7
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.5 ±0.7 ±0.4 ±0.4 ±0.5 ±0.6 ±0.7 ±0.4 ±0.6
Beamwidth, Horizontal Tolerance, degrees ±11 ±6 ±6 ±6 ±11 ±6 ±10 ±8 ±8 ±6 ±5
Beamwidth, Vertical Tolerance, degrees ±0.9 ±0.7 ±0.6 ±0.4 ±0.3 ±0.3 ±0.3 ±0.5 ±0.5 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 18 16 14 13 15 16 16 15 15 15 14

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.46 m² | 4.951 ft²
Effective Projective Area (EPA), lateral 0.25 m² | 2.691 ft²
Wind Loading @ Velocity, frontal 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 266.0 N @ 150 km/h (59.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 780.0 N @ 150 km/h (175.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 530 mm | 20.866 in
Depth, packed 349 mm | 13.740 in
Length, packed 2272 mm | 89.449 in
Weight, gross 49.7 kg | 109.570 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (5)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, antenna only 37.5 kg | 82.673 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,200 W @ 50 °C

Electrical Specifications

R1,R2 R1,R2 R1,R2 B1,B2 B1,B2 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 5,6,7,8 5,6,7,8 9,10,15,16 11,12,13,14 11,12,13,14 11,12,13,14 11,12,13,14 11,12,13,14
Beamwidth, Horizontal, degrees 66 60 57 69 65 60 69 66 64 63 58
Beamwidth, Vertical, degrees 10.4 9.4 8.7 5.6 5.3 4.4 6.8 5.6 5.2 4.7 4.4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 16 14 16 18 21 18 15 15 18 16
Front-to-Back Ratio at 180°, dB 31 32 32 32 30 31 32 35 33 33 34
Front-to-Back Total Power at 180° ± 30°, dB 23 22 21 25 25 22 21 27 27 27 27
CPR at Boresight, dB 20 19 18 21 23 22 20 19 19 21 18
Isolation, Cross Polarization, dB 27 27 27 27 27 27 26 26 26 26 26
Isolation, Inter-band, dB 27 27 27 27 27 27 27 27 27 27 27
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
Gain by all Beam Tilts, average, dBi 14.3 14.8 15.0 16.6 17.1 17.3 15.5 16.6 17.4 17.8 17.7
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.5 ±0.7 ±0.4 ±0.4 ±0.5 ±0.6 ±0.7 ±0.4 ±0.6
Beamwidth, Horizontal Tolerance, degrees ±11 ±6 ±6 ±6 ±11 ±6 ±10 ±8 ±8 ±6 ±5
Beamwidth, Vertical Tolerance, degrees ±0.9 ±0.7 ±0.6 ±0.4 ±0.3 ±0.3 ±0.3 ±0.5 ±0.5 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 18 16 14 13 15 16 16 15 15 15 14

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.46 m² | 4.951 ft²
Effective Projective Area (EPA), lateral 0.25 m² | 2.691 ft²
Wind Loading @ Velocity, frontal 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 266.0 N @ 150 km/h (59.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 780.0 N @ 150 km/h (175.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 530 mm | 20.866 in
Depth, packed 349 mm | 13.740 in
Length, packed 2272 mm | 89.449 in
Weight, gross 49.7 kg | 109.570 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
