SBNHH-1D85A
6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 85° HPBW, 3x RET
Features and Benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Three internal RETs for independent tilt on all three bands
- The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |

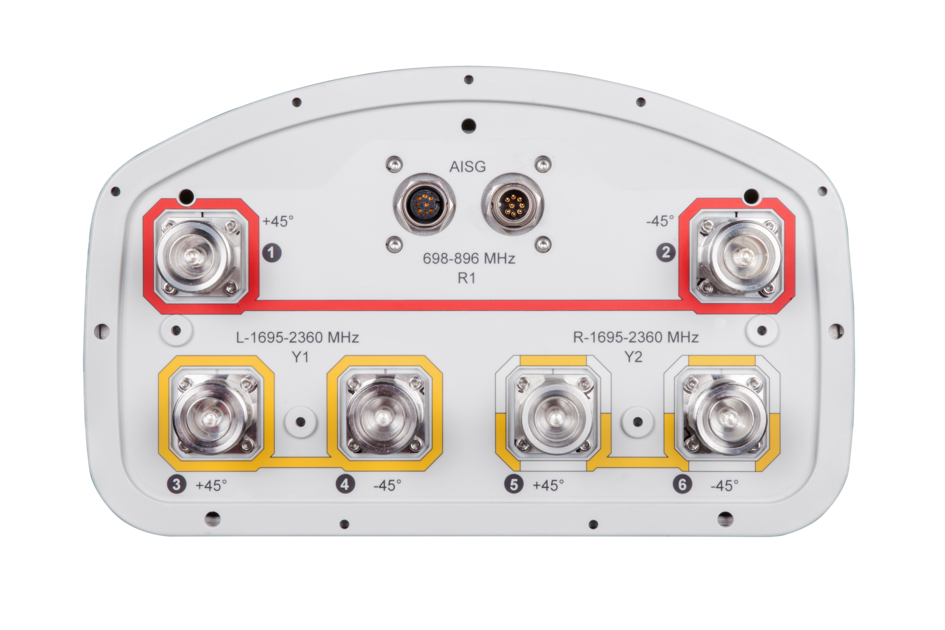

| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 1219 mm | 47.992 in |
| Net Weight, without mounting kit | 14.4 kg | 31.747 lb |
Array Layout
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 13.0 | 13.0 | 15.9 | 16.6 | 16.8 | 17.1 |
| Beamwidth, Horizontal, degrees | 84 | 87 | 81 | 79 | 80 | 77 |
| Beamwidth, Vertical, degrees | 18.9 | 17.1 | 7.9 | 7.3 | 6.9 | 6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 1–9 | 1–9 | 1–9 | 1–9 |
| USLS (First Lobe), dB | 15 | 15 | 14 | 15 | 15 | 14 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.16 m² | 1.722 ft² |
| Effective Projective Area (EPA), lateral | 0.13 m² | 1.399 ft² |
| Wind Loading @ Velocity, frontal | 173.0 N @ 150 km/h (38.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 142.0 N @ 150 km/h (31.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 334.0 N @ 150 km/h (75.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 176.0 N @ 150 km/h (39.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 409 mm | 16.102 in |
| Depth, packed | 299 mm | 11.772 in |
| Length, packed | 1339 mm | 52.717 in |
| Weight, gross | 22.4 kg | 49.383 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 1219 mm | 47.992 in |
| Net Weight, without mounting kit | 14.4 kg | 31.747 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 13.0 | 13.0 | 15.9 | 16.6 | 16.8 | 17.1 |
| Beamwidth, Horizontal, degrees | 84 | 87 | 81 | 79 | 80 | 77 |
| Beamwidth, Vertical, degrees | 18.9 | 17.1 | 7.9 | 7.3 | 6.9 | 6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 1–9 | 1–9 | 1–9 | 1–9 |
| USLS (First Lobe), dB | 15 | 15 | 14 | 15 | 15 | 14 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.16 m² | 1.722 ft² |
| Effective Projective Area (EPA), lateral | 0.13 m² | 1.399 ft² |
| Wind Loading @ Velocity, frontal | 173.0 N @ 150 km/h (38.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 142.0 N @ 150 km/h (31.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 334.0 N @ 150 km/h (75.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 176.0 N @ 150 km/h (39.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 409 mm | 16.102 in |
| Depth, packed | 299 mm | 11.772 in |
| Length, packed | 1339 mm | 52.717 in |
| Weight, gross | 22.4 kg | 49.383 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
