L4NR-F

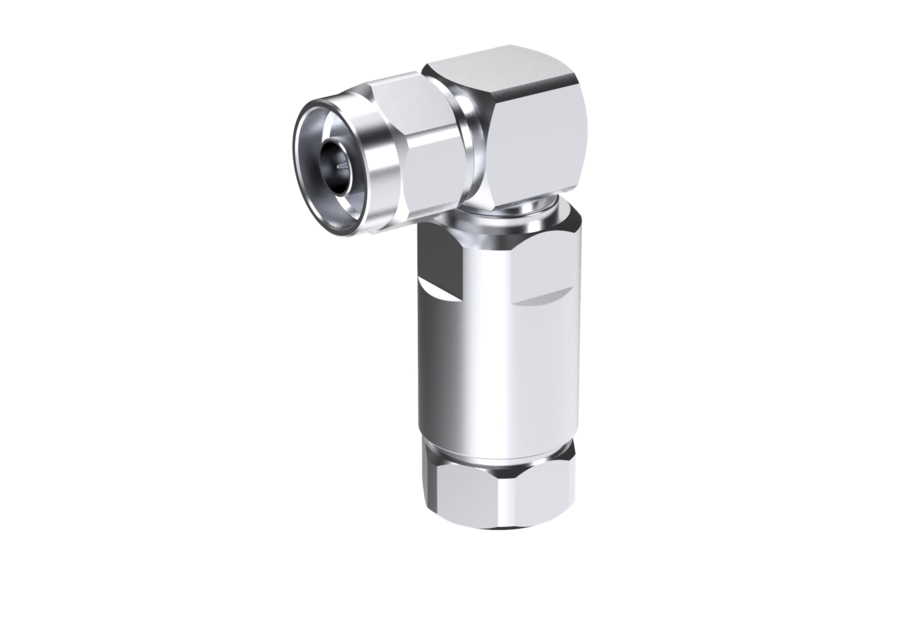

N Male Right Angle for 1/2 in LDF4-50A cable
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | LDF4-50A |
| Ordering Note | CommScope® standard product (Global) |
| Warranty | Five years |
General Specifications
| Body Style | Right angle |
| Cable Family | LDF4-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 66.7 mm | 2.626 in |
| Right Angle Length | 39.2 mm | 1.543 in |
| Diameter | 23 mm | 0.906 in |
| Nominal Size | 1/2 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications
| 3rd Order IMD | -159 dBc |
| 3rd Order IMD at Frequency | -116 dBm @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) | Gated VSWR | Gated Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 0–1000 MHz | 1.050 | 32.26 | 1.023 | 39.00 | ||
| 1000–2200 MHz | 1.119 | 25.00 | 1.074 | 29.00 | ||
| 2200–3000 MHz | 1.150 | 23.12 | 1.106 | 26.00 | ||
| 2700–3600 MHz | 1.150 | 23.12 | 1.106 | 26.00 | ||
| 3600–5000 MHz | 1.220 | 20.07 | 1.106 | 26.00 | ||
| 5000–6000 MHz | 1.330 | 16.97 | 1.152 | 23.00 | ||
| 6000–8800 MHz | 1.253 | 19.00 | 1.501 | 13.97 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 600 N | 134.885 lbf |
| Connector Retention Torque | 4.5 N-m | 39.828 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Retention Force | 450 N | 101.164 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Height, packed | 248.920 mm | 9.8 in |
| Width, packed | 266.700 mm | 10.5 in |
| Length, packed | 266.700 mm | 10.5 in |
| Packaging quantity | 50 |
Product Classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | LDF4-50A |
| Ordering Note | CommScope® standard product (Global) |
| Warranty | Five years |
General Specifications
| Body Style | Right angle |
| Cable Family | LDF4-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 66.7 mm | 2.626 in |
| Right Angle Length | 39.2 mm | 1.543 in |
| Diameter | 23 mm | 0.906 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD | -159 dBc |
| 3rd Order IMD at Frequency | -116 dBm @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) | Gated VSWR | Gated Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 0–1000 MHz | 1.050 | 32.26 | 1.023 | 39.00 | ||
| 1000–2200 MHz | 1.119 | 25.00 | 1.074 | 29.00 | ||
| 2200–3000 MHz | 1.150 | 23.12 | 1.106 | 26.00 | ||
| 2700–3600 MHz | 1.150 | 23.12 | 1.106 | 26.00 | ||
| 3600–5000 MHz | 1.220 | 20.07 | 1.106 | 26.00 | ||
| 5000–6000 MHz | 1.330 | 16.97 | 1.152 | 23.00 | ||
| 6000–8800 MHz | 1.253 | 19.00 | 1.501 | 13.97 |
Mechanical Specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 600 N | 134.885 lbf |
| Connector Retention Torque | 4.5 N-m | 39.828 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Retention Force | 450 N | 101.164 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Height, packed | 248.920 mm | 9.8 in |
| Width, packed | 266.700 mm | 10.5 in |
| Length, packed | 266.700 mm | 10.5 in |
| Packaging quantity | 50 |
