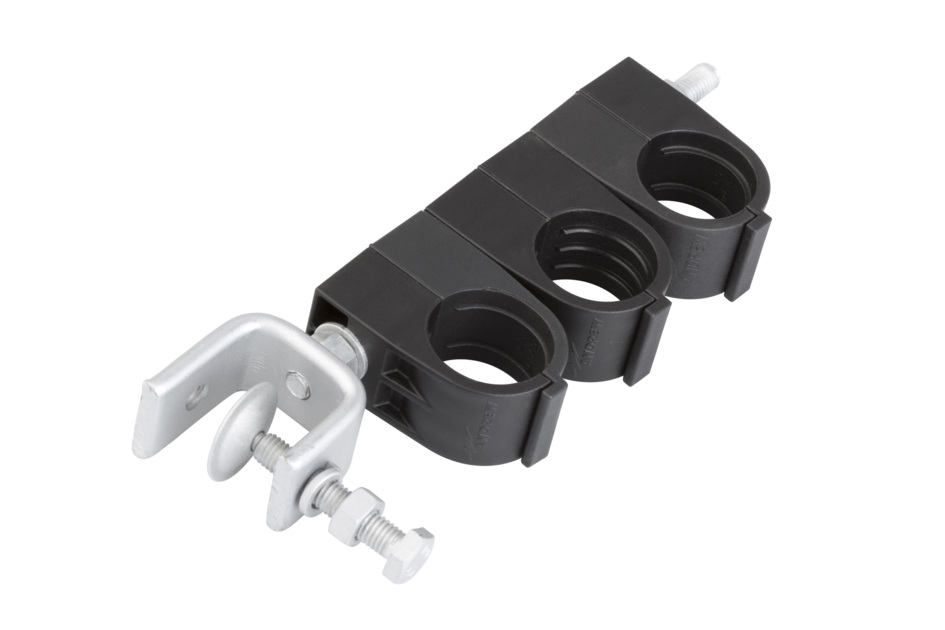

Single Hanger Kit for 7/8 in coaxial cable, triple stack; includes hardware and angle adapter
| Product Type | Hanger kit |
| Product Brand | ValuSite™ |
| Ordering Note | CommScope® standard product in Asia Pacific |
| Cables per Hanger | 3 |
| Color | Black |
| Hanger Type | Composite clamp |
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) |
| Mounting | M8 hardware |
| Height | 152.4 mm | 6 in |
| Maximum Stack Height | 3 |
| Width | 26.162 mm | 1.03 in |
| Length | 60.198 mm | 2.37 in |
| Compatible Diameter, maximum | 28.194 mm | 1.11 in |
| Compatible Diameter, minimum | 26.67 mm | 1.05 in |
| Nominal Size | 7/8 in |
| Return Loss Effect | 0.1 dB |
| DTF Effect | 0.1 dB |
| Material Type | Engineered plastic | Stainless steel |
| Vibration Survival | ≥4 hours at resonant frequency |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
| Height, packed | 15 cm | 5.906 in |
| Width, packed | 15 cm | 5.906 in |
| Length, packed | 3 cm | 1.181 in |
| Included | Angle adapter | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 0.45 kg | 0.992 lb |
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
