SA-3C

Base Product: STAND-OFF-ADAPTER-SERIES

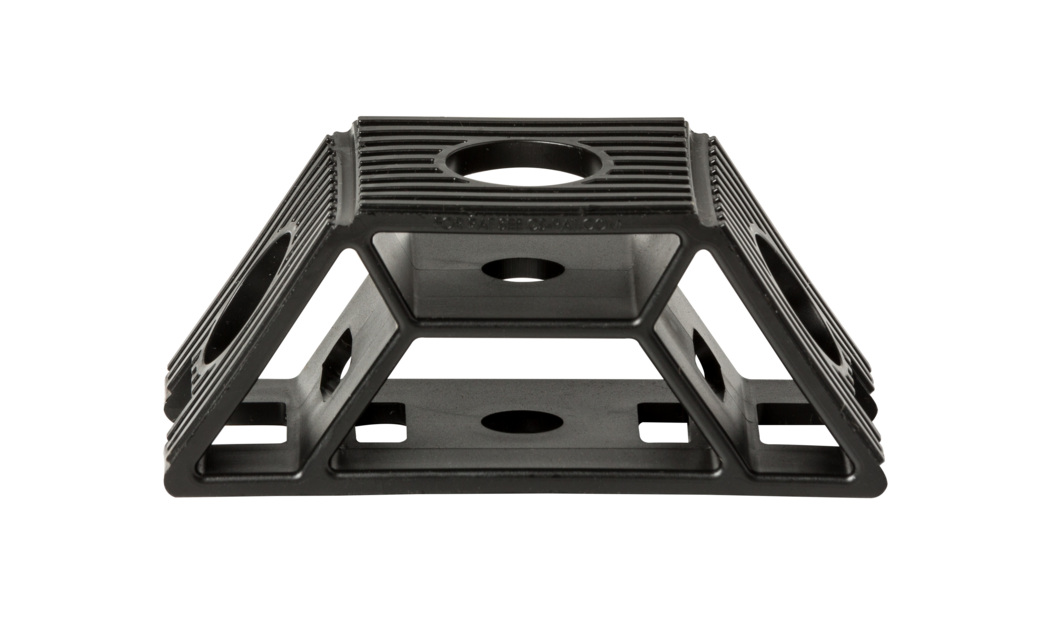

PIM-free, Three-way Snap-in Stand-off Adapter. Two sets of slots for round member attachment. 3/8" holes for bolt down attachment. Three 3/4" holes for Snap-in style hangers

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Adapter
Product Brand PIM-Guard
Ordering Note CommScope® standard product (Global)

General Specifications

Adapter Type Stand-off adapter
Color Black
Mounting 3/4 in through hole | 3/8 in through hole | Round member

Dimensions

Height 36.322 mm | 1.43 in
Outside Width 40.132 mm | 1.58 in
Outside Length 87.122 mm | 3.43 in

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Maximum Loading Triple stack for hangers SSH-47, SSH-710, SSH-1014, SSH-1416, SSH-411, SSH-1117
Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours

Packaging and Weights

Height, packed 17 cm | 6.693 in
Width, packed 13 cm | 5.118 in
Length, packed 10 cm | 3.937 in
Packaging quantity 10
Weight, gross 0.27 kg | 0.595 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type Adapter
Product Brand PIM-Guard
Ordering Note CommScope® standard product (Global)

General Specifications

Adapter Type Stand-off adapter
Color Black
Mounting 3/4 in through hole | 3/8 in through hole | Round member

Dimensions

Height 36.322 mm | 1.43 in
Outside Width 40.132 mm | 1.58 in
Outside Length 87.122 mm | 3.43 in

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Maximum Loading Triple stack for hangers SSH-47, SSH-710, SSH-1014, SSH-1416, SSH-411, SSH-1117
Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours

Packaging and Weights

Height, packed 17 cm | 6.693 in
Width, packed 13 cm | 5.118 in
Length, packed 10 cm | 3.937 in
Packaging quantity 10
Weight, gross 0.27 kg | 0.595 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
