L4CLICK

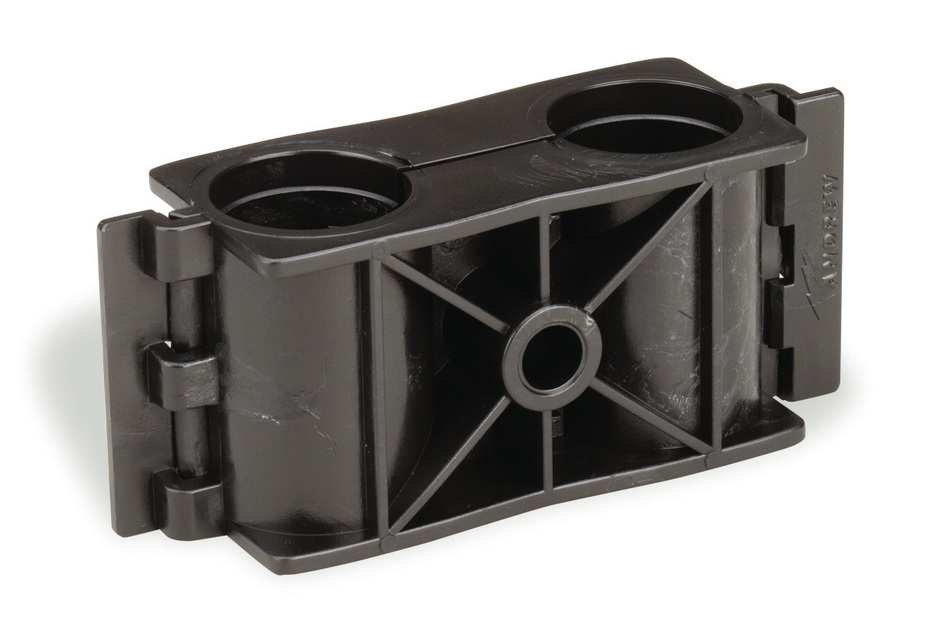

Double Click-on Hanger for 1/2 in coaxial cable
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Ordering Note CommScope® standard product in the United States and Canada

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Click-on hanger
Mounting Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod

Dimensions

Height 51.054 mm | 2.01 in
Maximum Stack Height 3
Width 44.958 mm | 1.77 in
Length 88.9 mm | 3.5 in
Compatible Diameter, maximum 16.256 mm | 0.64 in
Compatible Diameter, minimum 15.24 mm | 0.6 in
Nominal Size 1/2 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 19 cm | 7.48 in
Width, packed 8 cm | 3.15 in
Length, packed 17 cm | 6.693 in
Packaging quantity 10
Weight, gross 0.26 kg | 0.573 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
