WT-HRM2-72

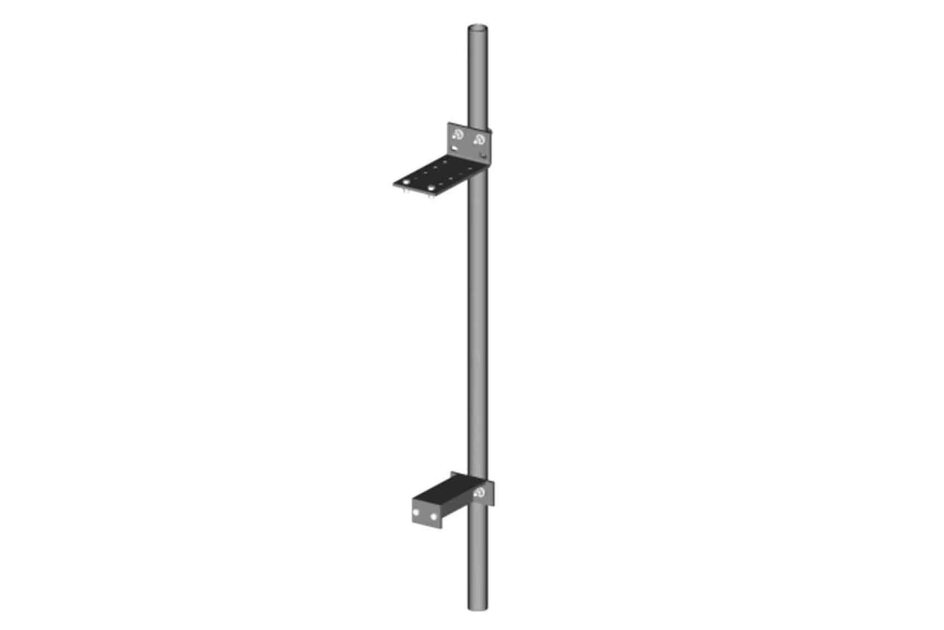

Water Tower Top Rail Mount, 2-3/8 in x 72 in plain end pipe included
Specifications
Product Classification
| Product Type | Water tower mount |
General Specifications
| Mounting | Handrail | Toe board |
| Pipe, quantity | 1 |
Dimensions
| Height | 1828.8 mm | 72 in |
| Width | 203.2 mm | 8 in |
| Length | 609.6 mm | 24 in |
| Pipe Length | 1828.8 mm | 72 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 228.6 mm | 9 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Hardware | Mount | Plain end pipes |
| Packaging quantity | 1 |
| Weight, net | 19.096 kg | 42.1 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Water tower mount |
General Specifications
| Mounting | Handrail | Toe board |
| Pipe, quantity | 1 |
Dimensions
| Height | 1828.8 mm | 72 in |
| Width | 203.2 mm | 8 in |
| Length | 609.6 mm | 24 in |
| Pipe Length | 1828.8 mm | 72 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 228.6 mm | 9 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Hardware | Mount | Plain end pipes |
| Packaging quantity | 1 |
| Weight, net | 19.096 kg | 42.1 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
