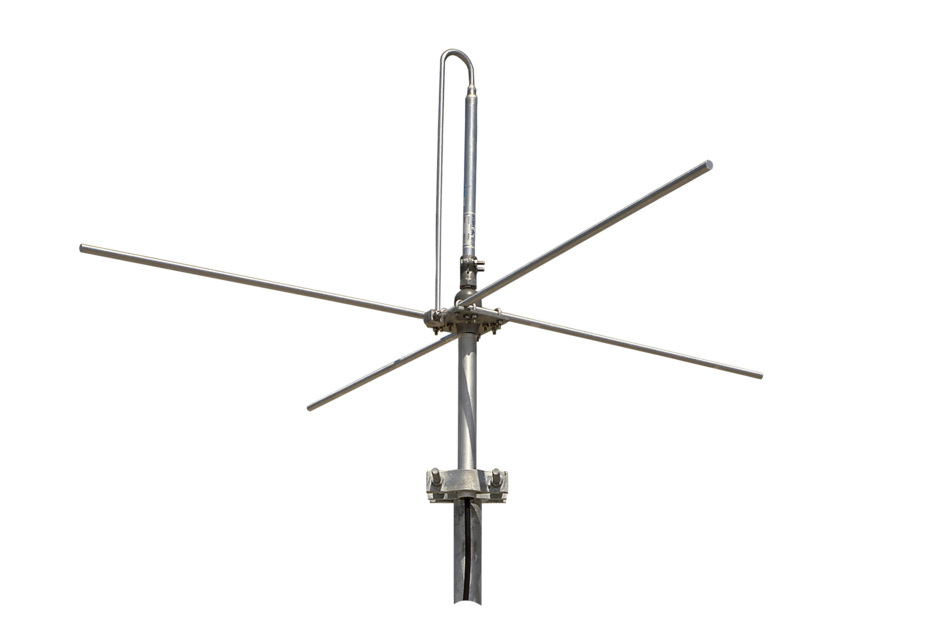

DB201-P

1-port omni ground plane antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt. Bandwidth: 2% of frequency.

Specifications
Finish making your selections or clear them to view relevant specifications.
View
Find a Partner
Support
Features and Benefits
  • Omnidirectional antenna
  • Mounts to top of tower, pole, or building
  • Field tunable to desired frequency, cutting chart included

General Specifications

Antenna Type Omni
Band Single band
Color Silver
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radiator Material Aluminum
RF Connector Interface N Male
RF Connector Location Bottom
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Width 226.1 mm | 8.902 in
Depth 218.4 mm | 8.598 in
Length 482.6 mm | 19 in
Net Weight, without mounting kit 2.7 kg | 5.952 lb

Electrical Specifications

Bandwidth 2% of frequency
Impedance 50 ohm
Operating Frequency Band 450 – 470 MHz
Polarization Vertical

Electrical Specifications

Frequency Band, MHz 450–470
Gain, dBi 2.1
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 78
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 500

Mechanical Specifications

Wind Loading @ Velocity, maximum 53.4 N @ 100 mph (12.0 lbf @ 100 mph)
Wind Speed, maximum 201 km/h | 124.896 mph

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General Specifications

Antenna Type Omni
Band Single band
Color Silver
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radiator Material Aluminum
RF Connector Interface N Male
RF Connector Location Bottom
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Width 226.1 mm | 8.902 in
Depth 218.4 mm | 8.598 in
Length 482.6 mm | 19 in
Net Weight, without mounting kit 2.7 kg | 5.952 lb

Electrical Specifications

Bandwidth 2% of frequency
Impedance 50 ohm
Operating Frequency Band 450 – 470 MHz
Polarization Vertical

Electrical Specifications

Frequency Band, MHz 450–470
Gain, dBi 2.1
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 78
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 500

Mechanical Specifications

Wind Loading @ Velocity, maximum 53.4 N @ 100 mph (12.0 lbf @ 100 mph)
Wind Speed, maximum 201 km/h | 124.896 mph

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
