JF-CAPKIT

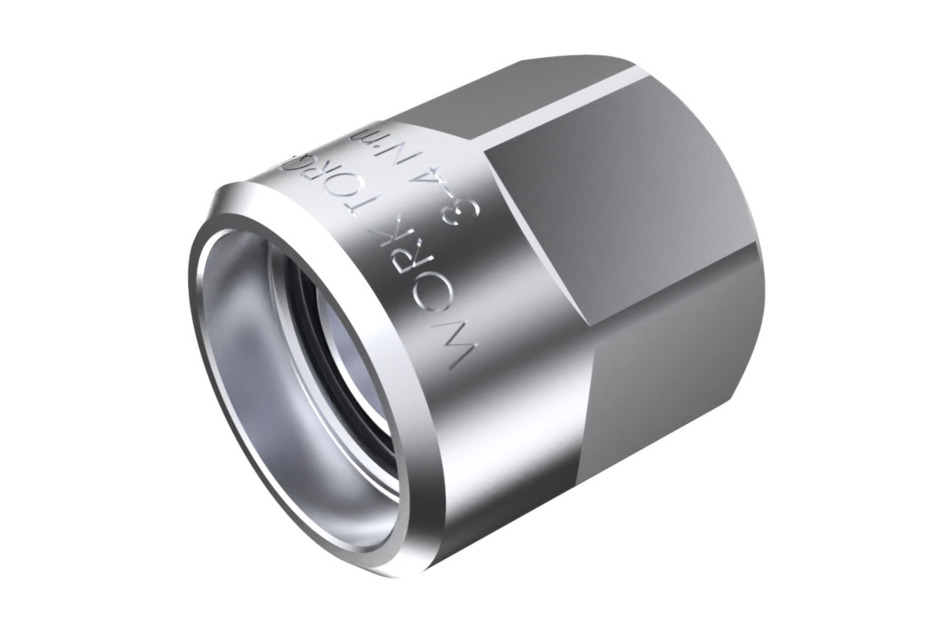

2.2-5 Female End Cap Assembly
Specifications
Product Classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
General Specifications
| Interface | 2.2-5 Female |
Dimensions
| Length | 19 mm | 0.748 in |
| Diameter | 18 mm | 0.709 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical Specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68.000 °F |
| Average Power, Ambient Temperature | 40 °C | 104.000 °F |
| Average Power, Inner Conductor Temperature | 100 W |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 24.24 g | 0.053 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
General Specifications
| Interface | 2.2-5 Female |
Dimensions
| Length | 19 mm | 0.748 in |
| Diameter | 18 mm | 0.709 in |
Material Specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical Specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68.000 °F |
| Average Power, Ambient Temperature | 40 °C | 104.000 °F |
| Average Power, Inner Conductor Temperature | 100 W |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 24.24 g | 0.053 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
