TA-DMHM

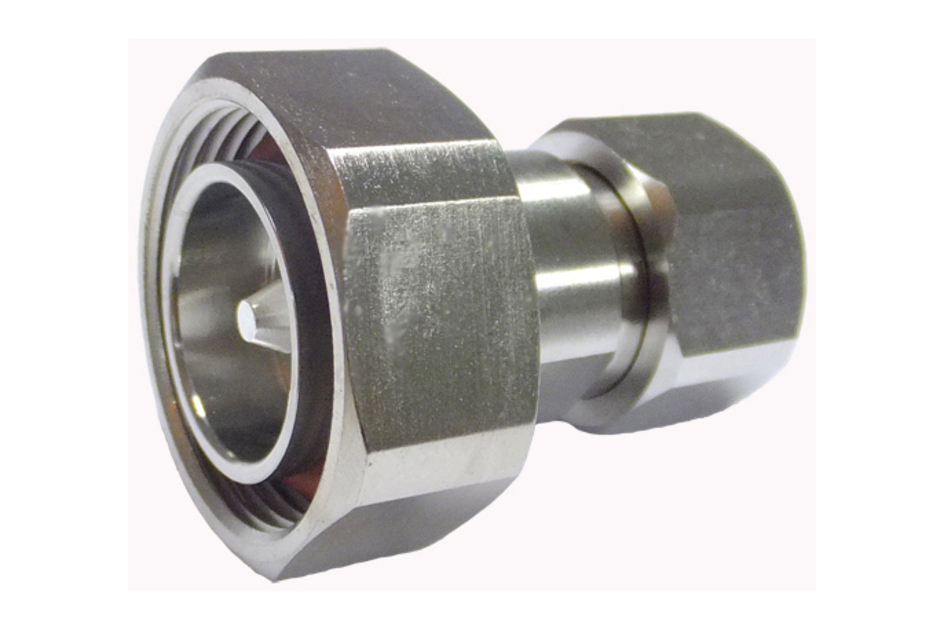

7-16 DIN Male to 4.3-10 Male Low-PIM Adapter

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type

Adapter

General Specifications

Body Style	Straight
Inner Contact Plating	Silver
Interface	7-16 DIN Male
Interface 2	4.3-10 Male
Mounting Angle	Straight
Outer Contact Plating	Trimetal

Dimensions

Length	45 mm \| 1.772 in
Diameter	34.6 mm \| 1.362 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

3rd Order IMD at Frequency	-163 dBc @ 1800 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
Cable Impedance	50 ohm
Connector Impedance	50 ohm
dc Test Voltage	2500 V
Inner Contact Resistance, maximum	1 mOhm
Insulation Resistance, minimum	5000 mOhm
Operating Frequency Band	0 – 6000 MHz
Outer Contact Resistance, maximum	1 mOhm

Return Loss/VSWR

Frequency Band	VSWR	Return Loss (dB)
0–4000 MHz	1.052	31.92
4000–6000 MHz	1.083	27.99

Mechanical Specifications

Coupling Nut Proof Torque	35 N-m \| 309.776 in lb
Coupling Nut Proof Torque Method	IEC 61169-4:9.3.6
Coupling Nut Proof Torque, Interface 2	7 N-m \| 61.955 in lb
Coupling Nut Retention Force	1000 N \| 224.809 lbf
Coupling Nut Retention Force Method	IEC 61169-4:9.3.11
Coupling Nut Retention Force, Interface 2	450 N \| 101.164 lbf
Interface Durability	100 cycles
Mechanical Shock Test Method	IEC 60068-2-27

Environmental Specifications

Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature	20 °C \| 68 °F
Average Power, Ambient Temperature	40 °C \| 104 °F
Average Power, Inner Conductor Temperature	100 °C \| 212 °F
Climatic Sequence Test Method	IEC 60068-1
Corrosion Test Method	IEC 60068-2-11
Damp Heat Steady State Test Method	IEC 60068-2-3
Immersion Depth	1 m
Immersion Test Mating	Mated
Immersion Test Method	IEC 60529:2001, IP68
Thermal Shock Test Method	IEC 60068-2-14
Vibration Test Method	IEC 60068-2-6

Packaging and Weights

Weight, net

104.64 g | 0.231 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
