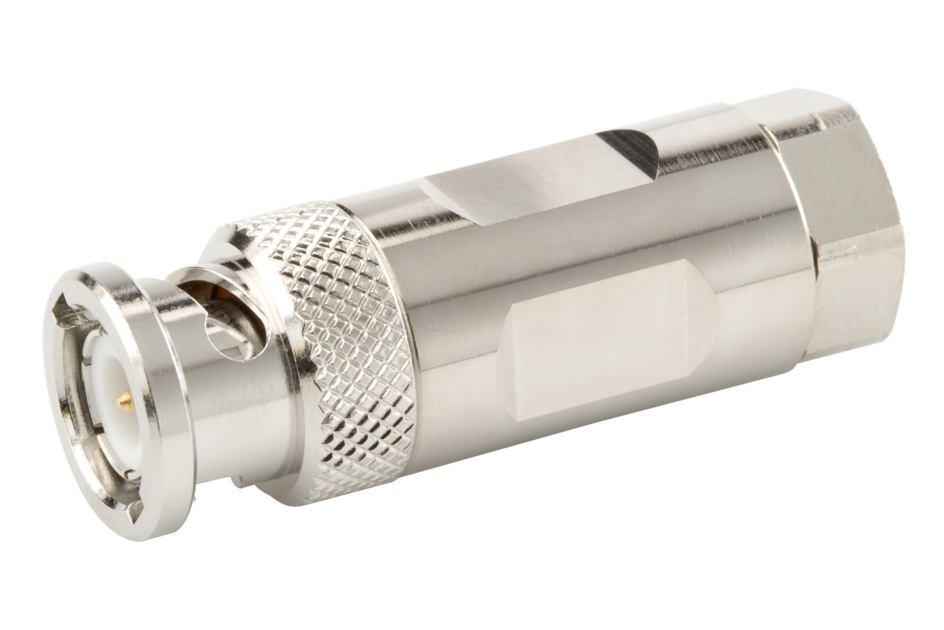

F1TBM-C

BNC Male for 1/4 in FSJ1-50A cable
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Wireless and radiating connector
Product Brand HELIAX®

General Specifications

Body Style Straight
Cable Family FSJ1-50A
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface BNC Male
Mounting Angle Straight
Outer Contact Attachment Method Self-clamping
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 14.48 mm | 0.570 in
Width 14.48 mm | 0.570 in
Length 43.43 mm | 1.710 in
Diameter 14.48 mm | 0.570 in
Nominal Size 1/4 in

Outline Drawing

Click on image to enlarge.

Electrical Specifications

Average Power at Frequency 0.4 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 2.5 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 4000 MHz
Outer Contact Resistance, maximum 1 mOhm
Peak Power, maximum 5 kW
RF Operating Voltage, maximum (vrms) 500 V
Shielding Effectiveness -110 dB

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
0–2000 MHz 1.12 25.00
2000–3000 MHz 1.12 25.00
3000–4000 MHz 1.16 23.00

Mechanical Specifications

Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 0.6 N-m | 5.310 in lb
Coupling Nut Proof Torque Method IEC 61169-16:9.3.11
Coupling Nut Retention Force 445 N | 100.040 lbf
Coupling Nut Retention Force Method IEC 61169-17:9.3.11
Insertion Force 66.72 N | 15.000 lbf
Insertion Force Method IEC 61169-16:9.3.5
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and Weights

Weight, net 32 g | 0.071 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Wireless and radiating connector
Product Brand HELIAX®

General Specifications

Body Style Straight
Cable Family FSJ1-50A
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface BNC Male
Mounting Angle Straight
Outer Contact Attachment Method Self-clamping
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 14.48 mm | 0.570 in
Width 14.48 mm | 0.570 in
Length 43.43 mm | 1.710 in
Diameter 14.48 mm | 0.570 in
Nominal Size 1/4 in

Electrical Specifications

Average Power at Frequency 0.4 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 2.5 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 4000 MHz
Outer Contact Resistance, maximum 1 mOhm
Peak Power, maximum 5 kW
RF Operating Voltage, maximum (vrms) 500 V
Shielding Effectiveness -110 dB

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
0–2000 MHz 1.12 25.00
2000–3000 MHz 1.12 25.00
3000–4000 MHz 1.16 23.00

Mechanical Specifications

Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 0.6 N-m | 5.310 in lb
Coupling Nut Proof Torque Method IEC 61169-16:9.3.11
Coupling Nut Retention Force 445 N | 100.040 lbf
Coupling Nut Retention Force Method IEC 61169-17:9.3.11
Insertion Force 66.72 N | 15.000 lbf
Insertion Force Method IEC 61169-16:9.3.5
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and Weights

Weight, net 32 g | 0.071 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
