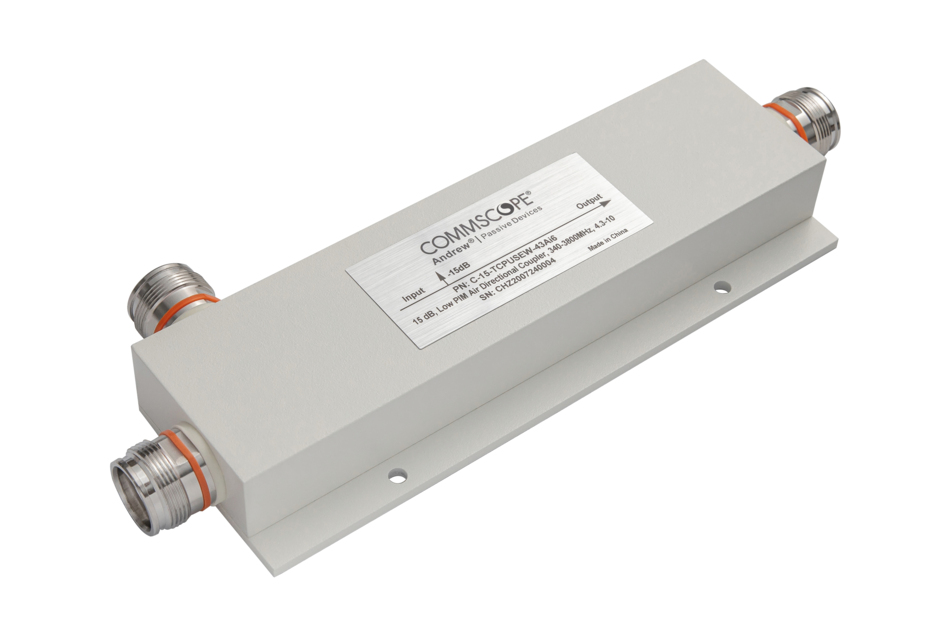

15 dB, Air Directional Coupler, 340-3800 MHz

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Directional coupler

General Specifications

Device Type Coupler
Application Indoor/Outdoor
Color White
Inner Contact Plating Silver
Interface 4.3-10 Female
Outer Contact Plating Trimetal

Dimensions

Height 23 mm | 0.906 in
Width 74.6 mm | 2.937 in
Length 209.5 mm | 8.248 in

Electrical Specifications

3rd Order IMD -165 dBc
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss at Frequency Band 0.55 dB @ 340–3800 MHz
Average Power, maximum 200 W
Coupling 15 dB
Coupling Tolerance ±1.4dB
Impedance 50 ohm
Isolation at Frequency Band 31 dB @ 2700–3800 MHz | 34 dB @ 340–2700 MHz
Operating Frequency Band 340 – 3800 MHz
Peak Power, maximum 1 kW
Reflected Power, maximum 40 W
VSWR at Frequency Band 1.2:1 @ 340–2700 MHz | 1.3:1 @ 2700–3800 MHz

Mechanical Specifications

Coupling Nut Proof Torque 4.5 N-m | 39.828 in lb

Environmental Specifications

Operating Temperature -25 °C to +85 °C (-13 °F to +185 °F)
Relative Humidity Up to 100%
Corrosion Test Method IEC 60068-2-11, 30 days
Ingress Protection Test Method IEC 60529:2001, IP67

Packaging and Weights

Height, packed 77 mm | 3.031 in
Width, packed 42 mm | 1.654 in
Length, packed 258 mm | 10.157 in
Weight, gross 0.619 kg | 1.365 lb
Weight, net 0.545 kg | 1.202 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
