F-CLAMP-D-1B
Base Product: CLAMP-SERIES-HANGER-BLOCKS

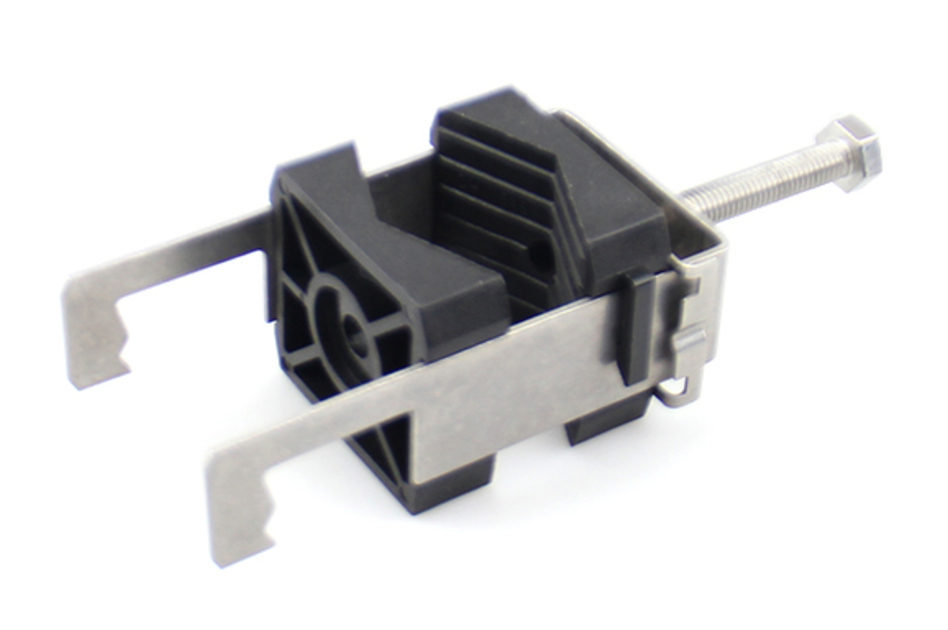

KwikClamp™ Hanger for power & fiber cables, 34-46 mm, single stack; includes hardware
Specifications
Product Classification
| Product Type | Hanger kit |
| Product Brand | KwikClamp™ |
| Ordering Note | CommScope® standard product in Europe, the Middle East, and Africa |
General Specifications
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | KwikClamp™ hanger |
| Mounting | 3–25 mm flat plate | Round Member 8-25 mm |
Dimensions
| Maximum Stack Height | 1 |
| Height | 163 mm | 6.417 in |
| Width | 57 mm | 2.244 in |
| Length | 45 mm | 1.772 in |
| Compatible Cable Diameter Range | 34-46 mm |
| Compatible Diameter, maximum | 46 mm | 1.811 in |
| Compatible Diameter, minimum | 34 mm | 1.339 in |
| Hanger Spacing, maximum | 1.83 m | 6.004 ft |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic | Stainless steel |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Five times cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 15.5 cm | 6.102 in |
| Width, packed | 30.5 cm | 12.008 in |
| Length, packed | 35.5 cm | 13.976 in |
| Included | Hardware |
| Packaging quantity | 30 |
| Weight, gross | 5.25 kg | 11.574 lb |
Product Classification
| Product Type | Hanger kit |
| Product Brand | KwikClamp™ |
| Ordering Note | CommScope® standard product in Europe, the Middle East, and Africa |
General Specifications
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | KwikClamp™ hanger |
| Mounting | 3–25 mm flat plate | Round Member 8-25 mm |
Dimensions
| Maximum Stack Height | 1 |
| Height | 163 mm | 6.417 in |
| Width | 57 mm | 2.244 in |
| Length | 45 mm | 1.772 in |
| Compatible Cable Diameter Range | 34-46 mm |
| Compatible Diameter, maximum | 46 mm | 1.811 in |
| Compatible Diameter, minimum | 34 mm | 1.339 in |
| Hanger Spacing, maximum | 1.83 m | 6.004 ft |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic | Stainless steel |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Five times cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 15.5 cm | 6.102 in |
| Width, packed | 30.5 cm | 12.008 in |
| Length, packed | 35.5 cm | 13.976 in |
| Included | Hardware |
| Packaging quantity | 30 |
| Weight, gross | 5.25 kg | 11.574 lb |
