FPS-G2ACCFNOUT32

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

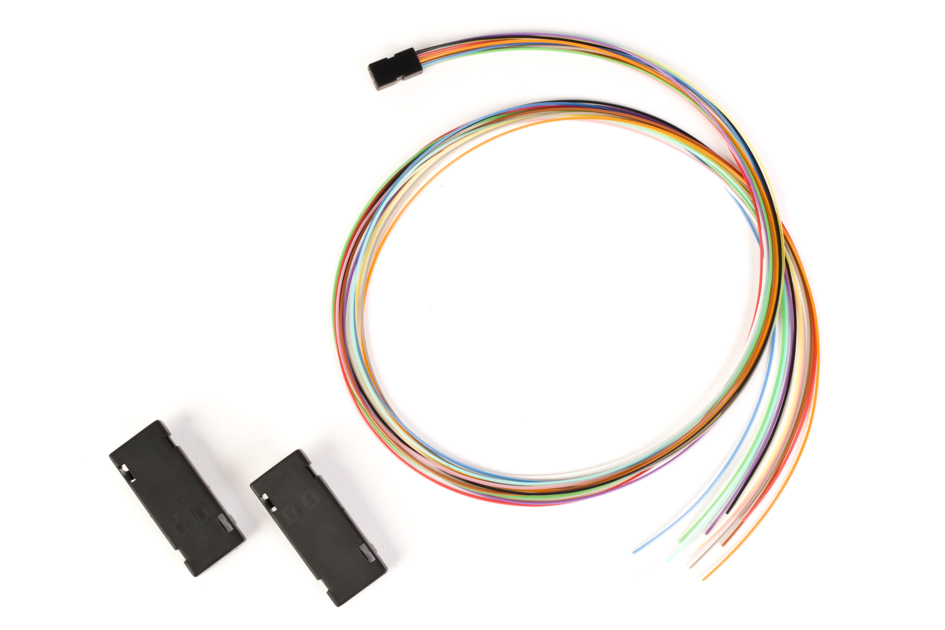

Splitter fanout kit 3x32

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber breakout kit, rectangular

General Specifications

Color Black
Compatible Interface LC | LC, keyed | SC | ST

Dimensions

Height 7.62 mm | 0.3 in
Width 17.78 mm | 0.7 in
Length 43.18 mm | 1.7 in
Tube Length 609.6 mm | 24 in
Tube Inner Diameter 500 µm
Tube Outer Diameter 900 µm

Material Specifications

Material Type, body Acrylonitrile butadiene styrene (ABS)
Material Type, tubing Thermoplastic elastomer (TPE)

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

Packaging and Weights

Included Breakout unit | Instruction sheet | Snap together housing | Twelve buffer tubes, 24 in x 900 µm
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber breakout kit, rectangular

General Specifications

Color Black
Compatible Interface LC | LC, keyed | SC | ST

Dimensions

Height 7.62 mm | 0.3 in
Width 17.78 mm | 0.7 in
Length 43.18 mm | 1.7 in
Tube Length 609.6 mm | 24 in
Tube Inner Diameter 500 µm
Tube Outer Diameter 900 µm

Material Specifications

Material Type, body Acrylonitrile butadiene styrene (ABS)
Material Type, tubing Thermoplastic elastomer (TPE)

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

Packaging and Weights

Included Breakout unit | Instruction sheet | Snap together housing | Twelve buffer tubes, 24 in x 900 µm
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
