HKL-CL-U
Base Product: CABLE-LADDER

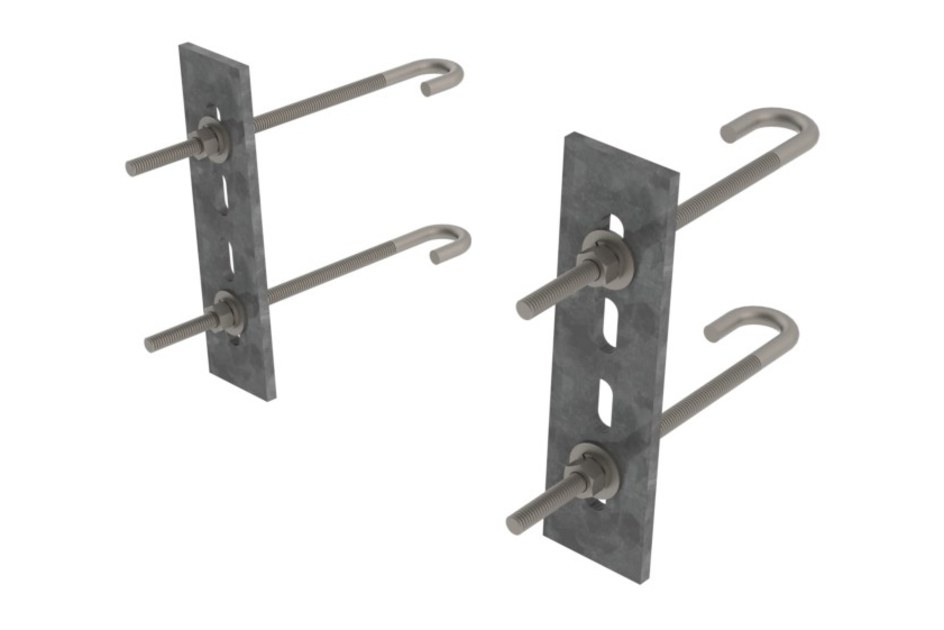

Universal Cable Ladder Hardware Kit for up to 8 inch round or angle members
Specifications
Product Classification
| Product Type | Ladder kit |
General Specifications
| Cable Runs, quantity | 0 |
| Mounting | Round and angle legs |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 127 mm | 5 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter 2, maximum | 203.2 mm | 8 in |
| Mounting Diameter 2, minimum | 25.4 mm | 1 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 25.4 mm | 1 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | J-bolts | Plates |
| Packaging quantity | 1 |
| Weight, net | 2.7 kg | 5.952 lb |
Product Classification
| Product Type | Ladder kit |
General Specifications
| Cable Runs, quantity | 0 |
| Mounting | Round and angle legs |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 127 mm | 5 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter 2, maximum | 203.2 mm | 8 in |
| Mounting Diameter 2, minimum | 25.4 mm | 1 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 25.4 mm | 1 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | J-bolts | Plates |
| Packaging quantity | 1 |
| Weight, net | 2.7 kg | 5.952 lb |
