MC-K12M-6-72

Base Product: MC-K-SERIES

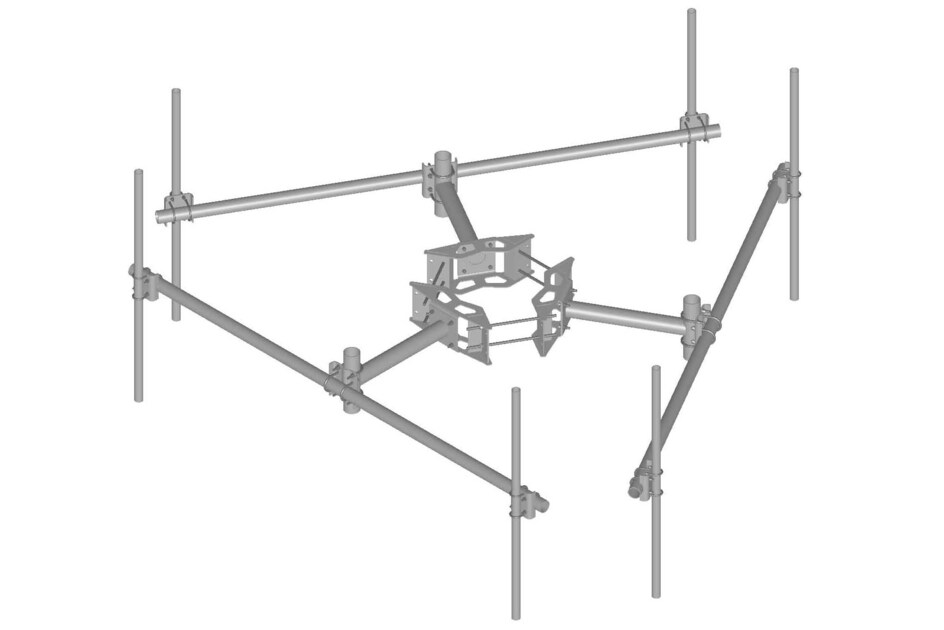

Monopole Co-location T-Frame kit, 12 in to 50 in OD, 12 ft 6 in face, includes pipe

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type

Monopole T-frame kit

Height	1828.8 mm \| 72 in
Face Width	3.81 m \| 12.5 ft
Width	3810 mm \| 150 in
Length	914.4 mm \| 36 in
Pipe Length	1828.8 mm \| 72 in
Mounting Diameter, maximum	1270 mm \| 50 in
Mounting Diameter, minimum	304.8 mm \| 12 in
Pipe Outer Diameter	60.960 mm \| 2.4 in
Stand-off Distance	914.4 mm \| 36 in
Mounting Circumference, maximum	3990.34 mm \| 157.1 in
Mounting Circumference, minimum	1196.34 mm \| 47.1 in

Material Type

Hot dip galvanized steel

Wind Rating	120 mph (BWS) at 150 ft AGL \| 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Criteria	Four 72 in x 8 in panel antennas per sector
Wind Rating Test Method	TIA/EIA-222-G

Included	Cellular pipe frames \| Pipe mounts \| Ring mount \| Stand-off arms
Packaging quantity	1
Weight, net	465.794 kg \| 1026.9 lb

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
