MT-195-12U

Base Product: MOUNT-ACCESSORIES

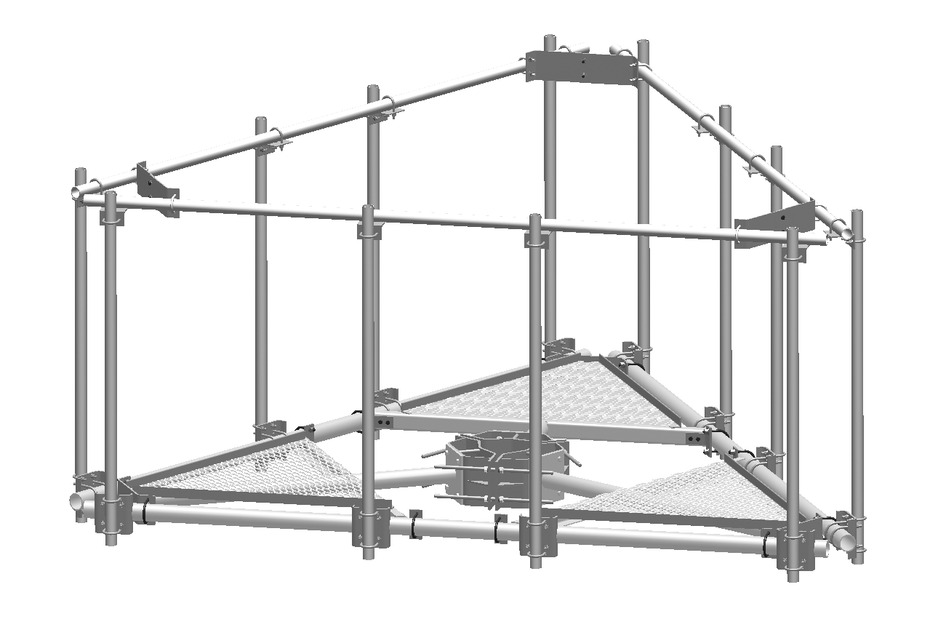

Upper Support Rail Kit for co-location platforms, 12 ft face with XA-U Universal Cross-over

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Support rail kit

General Specifications

Mounting Pipe, 60.3 mm (2-3/8 in ) OD
Sectors, quantity 3

Dimensions

Height 185.42 mm | 7.3 in
Face Width 3.81 m | 12.5 ft
Width 3810 mm | 150 in
Pipe Outer Diameter 60.960 mm | 2.4 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Crossover angles (12) | Hardware | Rail
Packaging quantity 1
Weight, net 110.994 kg | 244.7 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Support rail kit

General Specifications

Mounting Pipe, 60.3 mm (2-3/8 in ) OD
Sectors, quantity 3

Dimensions

Height 185.42 mm | 7.3 in
Face Width 3.81 m | 12.5 ft
Width 3810 mm | 150 in
Pipe Outer Diameter 60.960 mm | 2.4 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Crossover angles (12) | Hardware | Rail
Packaging quantity 1
Weight, net 110.994 kg | 244.7 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
