RF-NRK
Base Product: ROOFTOP-MOUNTS-AND-ACCESSORIES

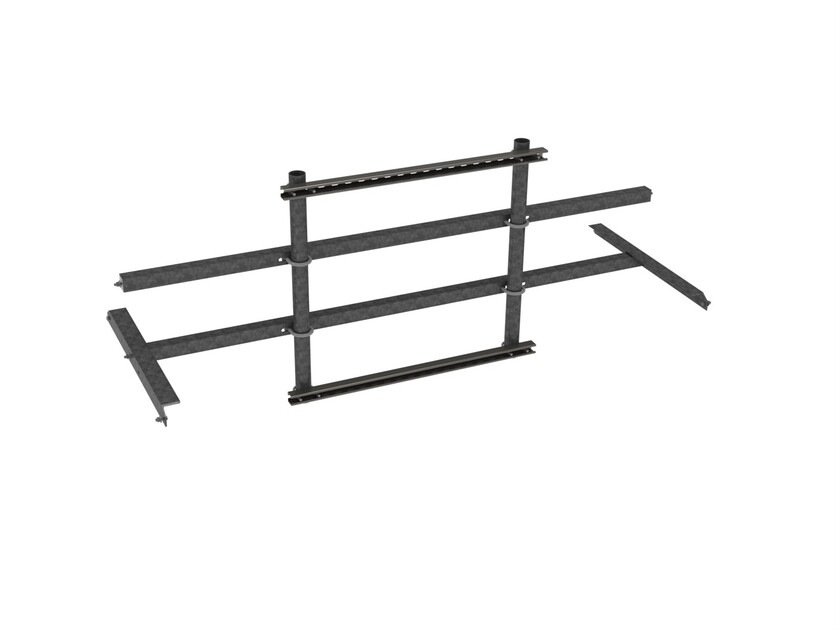

Retro-fit Kit for RRU mounting to Non-Penetrating Roof Frames
Specifications
Product Classification
| Product Type | Non-penetrating roof frame |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 1219.2 mm | 48 in |
| Face Width | 1.067 m | 3.5 ft |
| Width | 1066.8 mm | 42 in |
| Length | 0.914 m | 3 ft |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Angle | Hardware |
| Packaging quantity | 1 |
| Weight, net | 40.7 kg | 89.728 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
