RM-SM190-60
Base Product: TRIPOD-MOUNTS

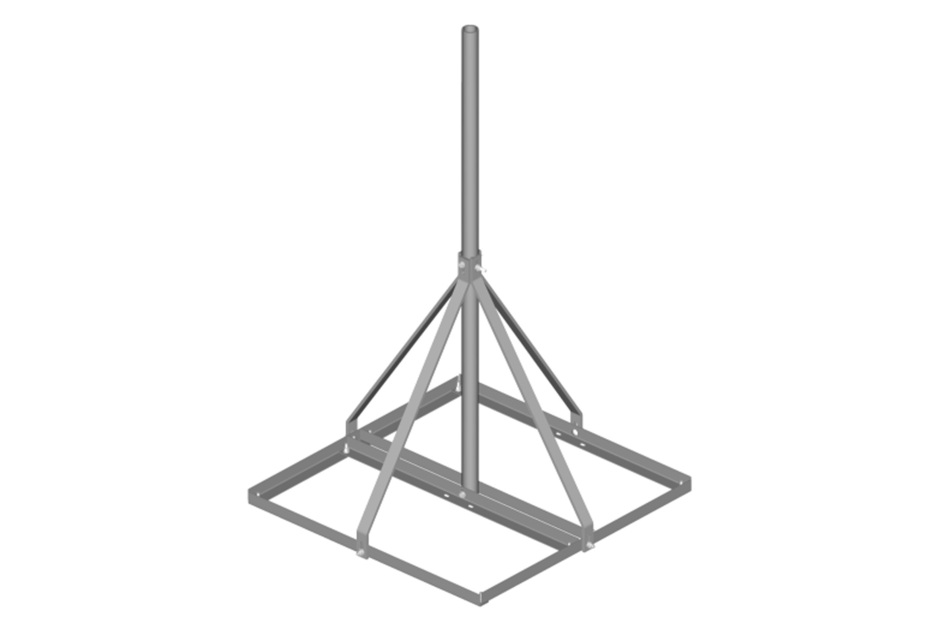

Non-Penetrating Roof Mount
Specifications
Product Classification
| Product Type | Tripod mount |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 914.4 mm | 36 in |
| Length | 0.914 m | 3 ft |
| Pipe Length | 1524 mm | 60 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Ballast tray | Mast | Supports |
| Packaging quantity | 1 |
| Weight, net | 27.2 kg | 59.966 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Tripod mount |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 914.4 mm | 36 in |
| Length | 0.914 m | 3 ft |
| Pipe Length | 1524 mm | 60 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
Packaging and Weights
| Included | Ballast tray | Mast | Supports |
| Packaging quantity | 1 |
| Weight, net | 27.2 kg | 59.966 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
