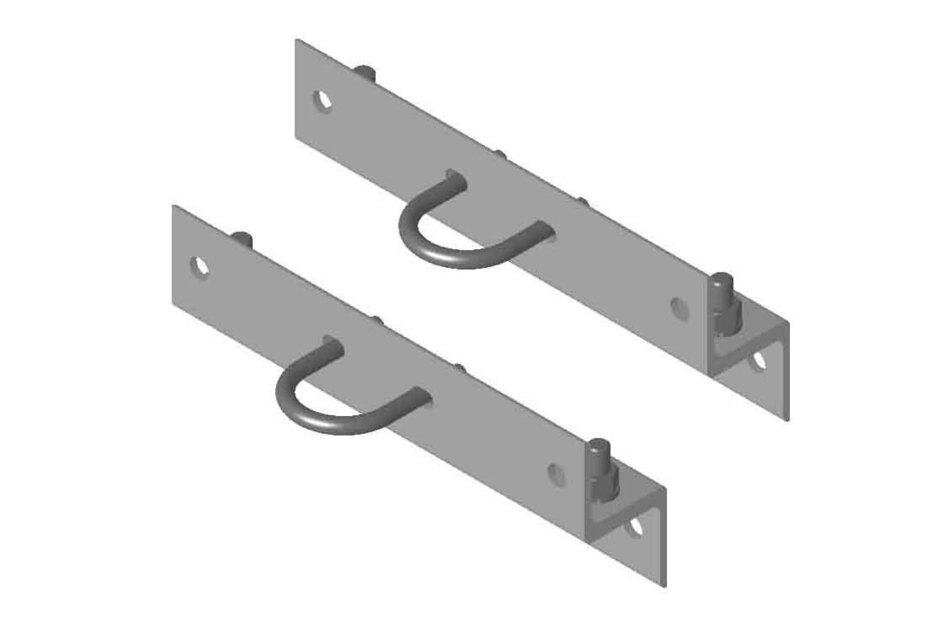

WMA238
Wall Mount for 2-3/8 in OD Pipes, pipe not included
Specifications
Product Classification
| Product Type | Wall mount kit |
General Specifications
| Mounting | Walls |
| Pipe, quantity | 0 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 609.6 mm | 24 in |
| Length | 101.6 mm | 4 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 101.6 mm | 4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Bracket | U-bolts (2) |
| Packaging quantity | 2 |
| Weight, net | 12.3 kg | 27.117 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Wall mount kit |
General Specifications
| Mounting | Walls |
| Pipe, quantity | 0 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 609.6 mm | 24 in |
| Length | 101.6 mm | 4 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 101.6 mm | 4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Bracket | U-bolts (2) |
| Packaging quantity | 2 |
| Weight, net | 12.3 kg | 27.117 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
